HYDRAULIC FERRULE FITTINGS - DIN 2353

We at Hydrofit Engineers, offers a wide range of high quality hydraulic ferrule fittings which is designed to ensure secure, strong and leak free connections in hydraulic fluid systems. With over 34 years of experience, Hydrofit Engineers started as a dealer in Chennai and today is established as an established manufacturer of precision Hydraulic Fittings across India.

Our product range includes Hydraulic Tube Fittings, Hydraulic Adapters & Connector, Hydraulic Hose Fittings and custom fittings as per special requirements.

Hydraulic Ferrule Fittings for High Pressure Fluid Systems

Hydraulic ferrule fittings are the important part of any hydraulic system. Their primary work is to provide strong and leakage free connections between tubes, pipes, and various hydraulic components. Their accurate engineering prevents leakage, pressure loss and vibration problems while maintaining the smooth flow of hydraulic fluid.

Single Ferrule Hydraulic Fittings

Single Ferrule Fittings known an extremely reliable solution for hydraulic tube connections. Their design is based on the principle of controlled metal deformation, which provides a strong grip on the tube and effective sealing. These fittings are used for their robustness, ease of installation, and long-term reliability in hydraulic circuits.

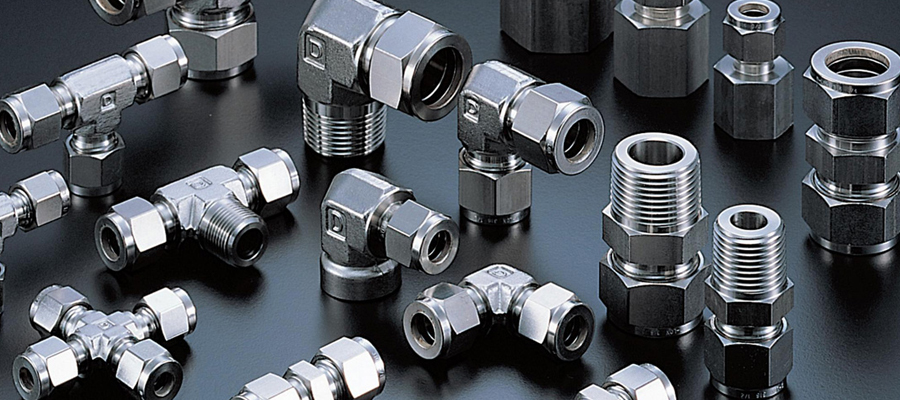

Here are are the Range of DIN2353 hydraulic ferrule fitting products:

Straight Union Coupling
Hydraulic Straight Coupling
Equal Elbow
Hydraulic Equal Elbow
Equal Tee
Hydraulic Equal Tee
hydraulic fittings in chennai
Hydraulic Equal Cross
hydraulic Swivel elbow
Hydraulic Swivel Elbow
Swivel Run Tee
Hydraulic Swivel Tee
Hydraulic fittings in chennai
Hydraulic Bulkhead Union
Bulkhead elbow
Hydraulic Bulkhead Elbow
Hydraulic Swivel Elbow Connector
Swivel Tee Connector
Hydraulic Swivel Tee Connector
hydraulic male branch tee
Parallel Male Stud Tee
hydraulic male branch tee
Parallel Male Run Tee
Male Stud Elbow
Parallel male Stud Elbow
Male Stud coupling
Taper Male Stud Coupling
Taper Male Elbow
Taper Male Stud Elbow
taper male branch tee
Taper Male Stud Tee
hydraulic banjo coupling
Hydraulic Banjo Coupling
Get A Quote

Key Features - Ferrule Hydraulic Fittings

  • Manufactured as per DIN 2353 standards
  • High corrosion and pressure resistance
  • Strong cutting ring design for leak-proof connections
  • Suitable for high-pressure hydraulic applications
  • Long service life with minimal maintenance

Hydraulic ferrule fittings are the ideal choice for hydraulic systems that demand strength, precision, corrosion resistance, resistance to chemical media and moisture and long-term reliability.

Uses - Ferrule Hydraulic Fittings DIN 2353

  • Heavy Engineering
  • Marine Equipment
  • Industrial Machinery
  • Steel Plants
  • Special Purpose machines

Construction of Single Ferrule Fittings

Single ferrule fittings generally consist of three main parts:

  • Fitting Body – Provides the seating surface and connection interface
  • Ferrule (Cutting Ring) – Creates the mechanical grip and sealing action
  • Coupling Nut – Generates the compression force during tightening

This three piece design allows for secure assembly and dependable sealing performance.

Working Principle of Hydraulic Ferrule Fitting DIN2353

  1. Assembly
    The ferrule is slide over the tube, and the tube is inserted into the fitting body.
  2. Compression
    Tightening the coupling nut forces the ferrule forward into the fitting body’s internal seat.
  3. Grip & Seal Formation
    The ferrule provides a firm grip on the tube and creates a leak-free seal.
  4. Secure Connection
    The connection is capable of withstanding high pressure and vibration.

How the Hydraulic Ferrule Fitting DIN2353 Works

When the Coupling Nut is progressively tightened it makes the Progressive Ring to move on to the tube which subsequently makes two bites into the outside diameter of the pipe, thereby forming a visible collar of material at 1, ensuring a strong, reliable, high degree of safety and permanent sealing due to the outstanding construction & design of our progressive ring.
A second seal point at 2 is also created between the now bowed ferrule and the fitting body seat. The progressive ring in its dismantled state can be turned around while still on the tube. Fitting is a flare less three – piece design fitting comprising of a Socket body having a precision conical seat, a one – piece precision machined hardened Progressive Ring (ferrule) and a Coupling Nut.

Installation Guidelines

Correct installation is essential for optimal sealing and durability:

✔ Select Proper Fitting Size – Match the fitting to the tube outer diameter
✔ Prepare Tube End – Ensure clean, burr-free, and square cut surfaces
✔ Position Ferrule Correctly – Align as per fitting design
✔ Ensure Proper Tightening – Follow recommended torque practices

Accurate assembly ensures long-term leak-free performance.

Why Choose Hydrofit Engineers Ferrule Fittings?

Hydrofit Engineers hydraulic ferrule fittings are designed for precision, durability, and reliability in critical hydraulic applications.

  • High manufacturing accuracy
  • Quality-tested materials
  • Suitable for industrial fluid power systems
  • Proven field performance

These fittings are used along with SS Seamless hydraulic tubes of both Metric OD and Nominal bore tube sizes.  Since the dimensions are standard as per DIN 2353 it is possible to integrate these fittings into any hydraulic system without having to make any modifications in the hydraulic line. Hence, these fittings are ideal for both new installations as well as for upgrades of existing hydraulic lines. The fittings are generally supplied with Carbon Steel Case hardened ferrules of SS Weld nipples depending on the line conditions and the preference of the client.

HYDRAULIC TUBE FITTINGS
As Per DIN 2353 - Single Ferrule Design

Tube to Tube
Couplings

Straight Union
Equal Elbow
Equal Tee
Equal Cross
Bulkhead Union
Bulkhead Elbow

Male Stud
Fittings

Parallel Male Stud Coupling
Taper Male Stud Coupling
Parallel Male Stud Elbow
Taper Male Stud Elbow
Parallel Male Stud Tee
Taper Male Stud Tee

Female Stud
Fittings

Female Stud Coupling
Female Stud Elbow
Female Stud Tee
Pressure Gauge connector

Other
Fittings

Banjo Couplings
Weld Couplings
Swivel Elbow
Swivel Tee
Swivel Elbow Connector
Swivel Tee Connector

TUBE TO TUBE COUPLINGS
MALE STUD FITTINGS
FEMALE STUD COUPLINGS
SWIVEL FITTINGS
BANJO COUPLINGS
WELD COUPLINGS
PRESSURE GAUGE CONNECTORS

Tube to Tube Couplings

Straight Union
Equal Elbow
Equal Tee
Equal Cross
Bulkhead Union
Bulkhead Elbow

Male Stud Fittings

Parallel Male Stud Coupling  Taper Male Stud Coupling      Parallel Male Stud Elbow     Taper Male Stud Elbow Parallel Male Stud Tee   Taper Male Stud Tee

Female Stud Fittings

Female Stud Coupling      Female Stud Elbow    Female Stud Tee    Pressure Gauge Connector

Other Fittings

Banjo Couplings

Weld Couplings

Swivel Elbow

Swivel Tee

Swivel Elbow Connhector

Swivel Tee Connector
