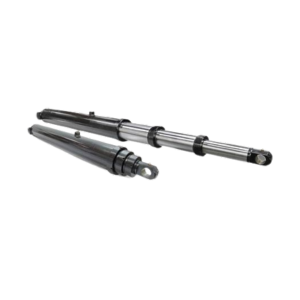

Pneumatic Telescopic Cylinder
Multi-Stage Telescoping Air Actuators
Hydrofit’s pneumatic telescopic cylinders deliver extended stroke and minimal retracted length – made for aerial platforms, dump beds, material handling and mobile equipment. Available in single-acting and double-acting configurations with adjustable stage counts and bore diameters.
Why Choose Hydrofit Pneumatic Telescopic Cylinders
- Commercial-grade, multi-stage design for long stroke with compact retracted length.
- Single-acting (spring/retract) and double-acting options.
- Industry-grade sealing & surface treatments for durability in mobile and industrial environments.
- Customizable stroke and stage configuration – build-to-order SKU support.
Product Configurations & Use Cases
You will get adjustable telescopic air cylinders for: aerial platforms, dump trucks, dock levelers, material handling systems, agricultural implements and compact construction equipment which are optimized to meet duty cycle and environmental requirements.
Aerial platforms & cherry pickers
(long stroke, compact storage)
Active dump beds & trailers
(robust single/double acting lift)
Dock levelling & material handling
(synchronized multi-cylinder arrays)
Technical Features & Benefits of Telescopic Cylinders

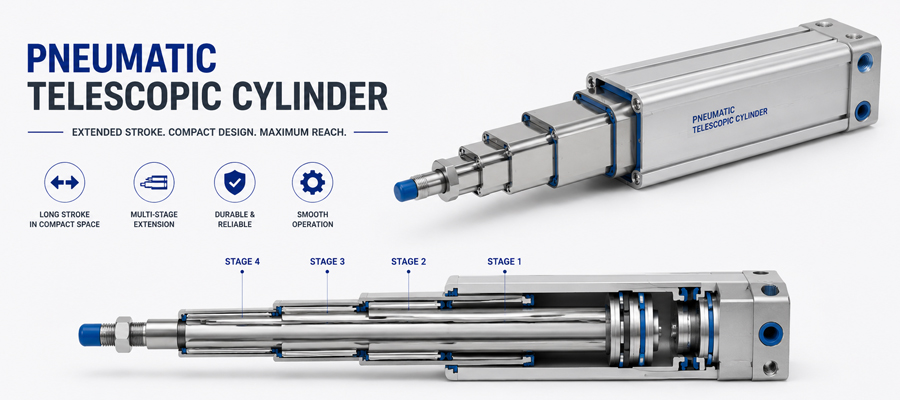

- Nested multi-stage design for maximum stroke-to-retracted length ratio.
- High-integrity seals and low-friction coatings for long service life.
- Optional encoders/position sensors and locking features for safety-critical lifts.
- Modular mounting (flange, trunnion, clevis) for OEM integration.
FAQs
1. What is the lead time for custom pneumatic telescopic cylinders?
Typically, the lead time for custom builds is 7–14 business days.
2. Can I order single prototype units?
Yes, Hydrofit accommodates prototype orders and quantity-based pricing for production runs.
3. What is the maximum stroke available?
Standard telescopic strokes reach up to 1200 mm with multi-stage assemblies. you can consult to Hydrofit for large-stroke custom designs.
4. How to select a pneumatic telescopic cylinder?
Choose by specifying the following parameters:
load, stroke, retracted envelope, acting type, bore/pressure, duty cycle, environment, mounting, and compliance.
For customized specifications, ask for a Hydrofit sizing consultation or you know more about telescoping cylinders here.
5. How many type of pneumatic cylinder you deliver?
Hydrofit Engineers supplies telescopic, single-acting, double-acting, rodless, guided/tie-rod, compact, heavy-duty cylinders, plus custom integrated solutions.
