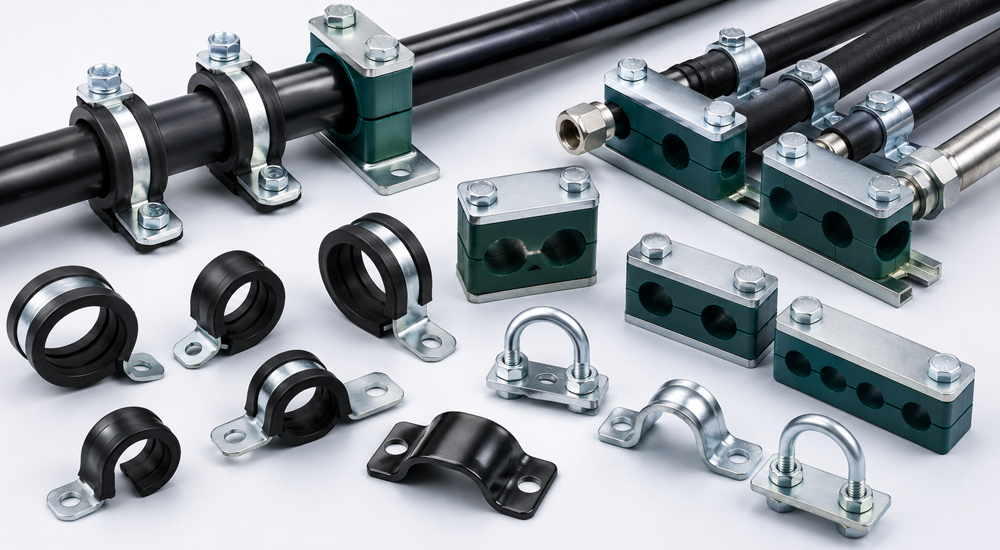

Hydraulic Pipe Clamps for Industrial Line Support
Tube Support for Industrial Installations
Hydraulic pipe clamps and hydraulic tube clamps are terms buyers use for line-support products in rigid hydraulic installations. The suitable clamp is selected from the actual pipe or tube outside diameter, the required clamp system and series, line routing, number of lines, mounting arrangement, vibration, installation environment and available space.
Based in Chennai, Hydrofit Engineers supplies hydraulic pipe and tube clamps for industrial installations across India. The range includes DIN 3015 Standard or Light, Heavy and Twin series options; confirm the appropriate series and size for the application.
Why Clamp Selection Matters
Clamps help maintain line routing, limit unwanted tube movement and reduce contact between adjacent lines or machine components. They are part of the mechanical support system; they do not eliminate every source of vibration or guarantee against tube failure.
Selection should consider the actual line layout and service conditions. Tube OD alone is not enough: the clamp series, installation load, vibration, mounting point, environment, number of lines and available installation space also matter.
- Support rigid hydraulic lines at planned mounting points.
- Keep parallel routes organized and separated.
- Limit avoidable movement around bends, joints and connected components.
- Allow inspection and maintenance access within the installation layout.
DIN 3015 Clamp Series and Selection
DIN 3015 is used to organize clamp systems by series and construction. Selection is an engineering and installation decision, not a keyword label and not a direct substitute for the tube’s internal pressure rating.
| Selection field | Verified Hydrofit information |
|---|---|
| Product type | Hydraulic pipe and tube clamps |
| Applicable standard | DIN 3015 |
| Clamp series | Standard / Light, Heavy and Twin |
| Published overall OD range | Approximately 6–219 mm across the listed range; confirm the chosen series and size |
| Clamp body material | PP, aluminium, steel and stainless-steel options are referenced on the current page; confirm for the selected item |
| Top plate, weld plate and fasteners | Material and finish are not consistently published; confirm with the exact configuration |
| Mounting arrangement | Confirm the required mounting point and hardware for the installation |
| Temperature range | Not published for the complete range; confirm against body material and service conditions |
| Available sizes | Series-specific coverage must be confirmed; do not assume every series covers 6–219 mm |
Standard / Light Series
Used where the line size, mechanical support requirement, routing and installation conditions suit the Standard or Light configuration. The term does not mean that internal system pressure alone determines selection.
Heavy Series
Selected where the tube or pipe size, installation load, vibration and mounting conditions require a more substantial clamp arrangement. Confirm the complete assembly rather than selecting only from line pressure.
Twin Series
Supports two parallel lines in one coordinated arrangement where the actual OD, spacing and mounting layout are compatible.
Clamp Materials and Mounting Considerations
The current Hydrofit page references polypropylene, aluminium, steel and stainless-steel clamp options. Material availability varies by clamp series and component, so the body, top plate, base or weld plate, bolts and surface finish should be confirmed for the selected assembly.
Mounting must follow the actual line layout. Confirm the mounting point, supporting structure and hardware before installation. Where a rail, weld plate, stacking arrangement or other configuration is required, verify that it belongs to the available clamp series rather than assuming interchangeability.
Clamp spacing is not one universal value. Determine it from tube size, routing, bends, vibration, load and system requirements. The clamp arrangement should be coordinated with the selected hydraulic tube range; buyers using precision rigid lines can also review the published seamless tube specifications.
Hydraulic Tube Clamp Enquiry Information
For a technically useful quotation, provide:
- Tube or pipe outside diameter
- Number of lines
- Standard / Light, Heavy or Twin series where known
- Clamp body material where specified
- Required mounting arrangement and hardware
- Environment and application
- Quantity
- Drawing, photograph or sample reference where identification is needed
Hydrofit is based in Chennai and supplies hydraulic tube and pipe clamps for industrial requirements across India. Availability, series, size, material and mounting components should be confirmed for each enquiry. Request a clamp quotation with the available line and installation details.
Hydraulic Clamps in Fluid Power Installations
Clamps are used with rigid tube routes in hydraulic power packs, manufacturing equipment, machine tools, material-handling systems and other fluid power installations. They should support the planned route without forcing misaligned lines into position.
The clamp arrangement works alongside the selected hydraulic connection products. Where flexible movement is required, the routing decision may also involve hydraulic hose assemblies; rigid tubes and flexible hoses have different support requirements.
Frequently Asked Questions About Hydraulic Tube Clamps
1. How should hydraulic pipe clamps and tube clamps be selected?
Confirm the actual pipe or tube outside diameter, number of lines, required clamp system and series, mounting arrangement, environment, installation load and vibration conditions. Pipe-clamp and tube-clamp searches can describe related line-support needs, but the selected item must match the application. Confirm material and hardware for the chosen assembly.
2. Does tube pressure alone determine the clamp series?
No. Clamp selection depends on mechanical support, tube size, vibration, installation load, mounting arrangement, available space and other site conditions. The tube’s internal pressure rating is a separate engineering requirement.
3. What is a DIN 3015 tube clamp system?
DIN 3015 identifies standardized clamp arrangements used to support tubes and pipes. Hydrofit’s current page references Standard or Light, Heavy and Twin series; confirm the series, size and complete mounting assembly for the application.
4. When is a Twin Series clamp considered?
A Twin Series clamp may be considered for two compatible parallel lines where their outside diameters, spacing and mounting layout suit the available clamp configuration.
5. What should be confirmed for mounting?
Confirm the mounting point, supporting structure, plate or rail arrangement where applicable, fasteners, available space and planned clamp spacing. Spacing should follow the actual tube size, routing, vibration and system requirements.
