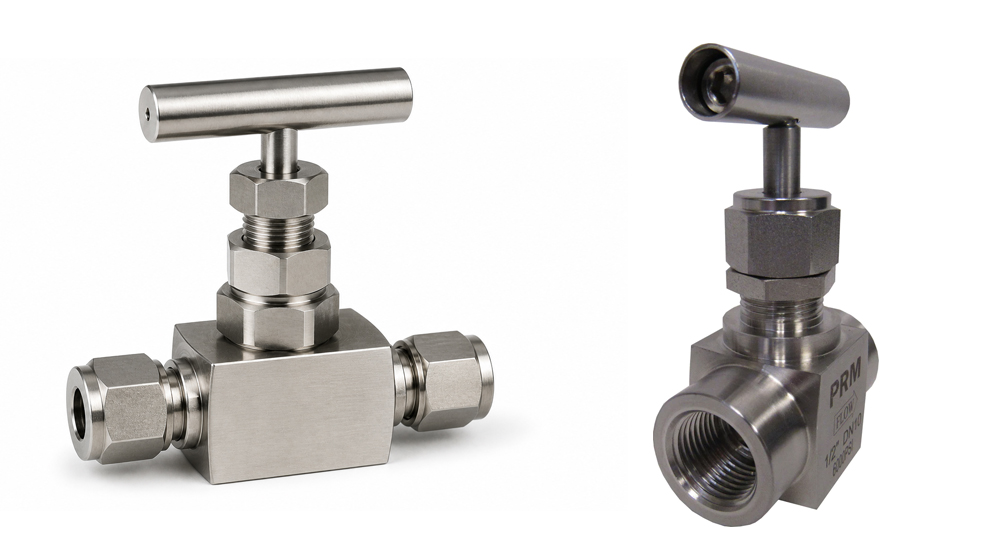

A high pressure needle valve is selected when a system needs controlled restriction rather than rapid on/off isolation. As the handle is turned, a tapered stem moves toward or away from the seat to adjust the flow path progressively within the limits of the selected valve design.
Based in Chennai, Hydrofit Engineers supports industrial enquiries across India. For correct selection, confirm the connection, operating pressure, media, temperature and required control function for the specific valve model.

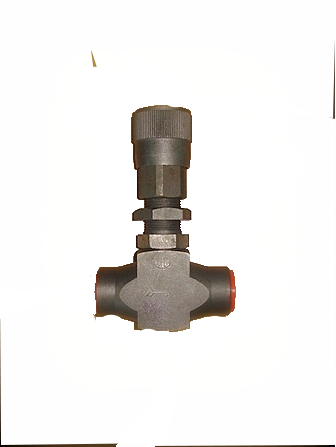

Inline Needle Valve - BSP
Inline RA Needle Valve - BSP
Needle valves are used where a gradual change in flow restriction is required. The applicable operating range, connection and material details must be confirmed for the selected model before use.
Construction of High Pressure Needle Valve
A needle valve assembly typically uses a body, a seat, a tapered stem and a handle. Turning the handle moves the stem in relation to the seat, changing the available flow path. Confirm the actual body material, stem and seat or seal materials, connection type and rated operating conditions from the documentation for the selected model.
Applications of Needle Valve
Needle valves may be considered for suitable hydraulic, instrumentation and industrial fluid systems where the duty calls for controlled restriction. The intended media, pressure, temperature, connection and required flow function should be checked against the selected valve model before installation.
Features of High Pressure Needle Valve
Selection points
• connection or thread and mating connection
• valve size and installation space
• required operating pressure
• media and operating temperature
• material and seat or seal requirements
• required flow or control function
• existing model marking, photograph or drawing when replacing a valve
Needle valves are used where controlled restriction is required for the selected application. For rapid isolation or shutoff, see our high pressure ball valves. Confirm the selected model is suitable for the connection, pressure, media and temperature.
FAQs:
What is a high pressure needle valve used for?
It is selected where a system needs controlled restriction or gradual adjustment, subject to the limits of the chosen valve model.
How is it different from a ball valve?
A ball valve is generally used for rapid isolation or shutoff. A needle valve is used where the duty requires progressive restriction or adjustment.
Can one pressure rating be applied to every needle valve?
No. Confirm the rating for the selected model, size, material, connection and operating temperature.
What should be included with an enquiry?
Provide the size, connection or thread, required operating pressure, material, media, temperature, control duty, quantity and an existing model, photograph or drawing where available.
