HYDRAULIC EQUAL CROSS

A hydraulic equal cross ermeto ferrule type is a type of hydraulic fitting that allows for the connection of four hydraulic tubes or pipes in a cross configuration. The ermeto ferrule type refers to the type of sealing mechanism used to ensure a secure and leak-free connection between the tubes or pipes and the fitting. This type of fitting is commonly used in hydraulic systems where equal flow distribution is required, such as in fluid power applications.

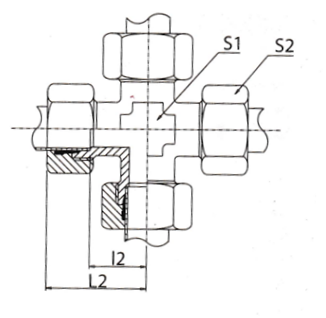

The hydraulic equal cross ermeto ferrule type fitting consists of several components, including the body, the ferrules, and the nuts. The body is the main part of the fitting and is designed to accommodate four tubes or pipes in a cross configuration. The ferrules are small metal rings that are placed over the end of each tube or pipe to provide a sealing surface for the nuts. The nuts are used to secure the ferrules and tubes or pipes to the body of the fitting.

The ermeto ferrule type sealing mechanism used in this type of hydraulic fitting consists of a cone-shaped ferrule that is compressed onto the tube or pipe as the nut is tightened onto the body of the fitting. This creates a secure and leak-free connection between the tube or pipe and the fitting. The ermeto ferrule type sealing mechanism is designed to provide a high level of reliability and durability, making it a popular choice for hydraulic systems.

The hydraulic equal cross ermeto ferrule type fitting is available in a range of sizes and materials to accommodate different hydraulic systems and applications. The size of the fitting is determined by the diameter of the tubes or pipes being connected, and the material of the fitting is typically chosen based on the specific needs of the application.

Some common materials used for hydraulic fittings include:

1. Stainless steel: Stainless steel fittings are highly resistant to corrosion and are often used in applications where the hydraulic fluid is corrosive or the fitting is exposed to harsh environmental conditions.
2. Brass: Brass fittings are often used in low-pressure applications where corrosion resistance is not as critical. Brass fittings are also commonly used in applications where the fitting needs to be easily accessible for maintenance or repairs.
3. Carbon steel: Carbon steel fittings are a popular choice for high-pressure applications, as they are able to withstand the high pressures and temperatures associated with these types of systems.

When selecting a hydraulic equal cross ermeto ferrule type fitting, it is important to consider several factors to ensure that the fitting is suitable for the specific needs of the application. Some of the key factors to consider include:

1. Tube or pipe size: The size of the tubes or pipes being connected will determine the size of the fitting needed. It is important to select a fitting that is compatible with the size of the tubes or pipes being used in the hydraulic system.
2. Pressure rating: The fitting should be rated to handle the maximum pressure of the hydraulic system. Choosing a fitting with a lower pressure rating can lead to failure or damage to the system.
