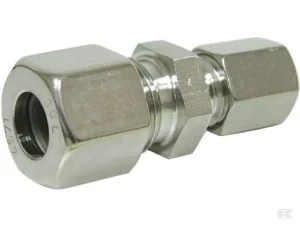

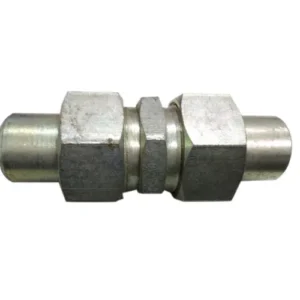

Hydraulic Straight Coupling - DIN2353

A hydraulic straight coupling DIN 2353 single bite ferrule type is a kind of hydraulic fitting din2353 that is commonly used in high-pressure hydraulic systems. Also known as hydraulic union coupling, it is a three piece design coupling assembly consisting of three distinct parts

Components of the Hydraulic Union Straight Coupling Assembly

The Hydraulic Straight Coupling assembly consists of :

The Main Union Body, the Nuts and the Ferrules or Cutting Rings.

Union Body : The Main Union Body is the Male threaded adapter which has a special 24 Degrees conical seats at both ends to seat the Ferrules or cutting rings and a center step seat for the Hydraulic Tube or Pipe to rest on, in the coupling assembly.

Progressive Nut : The Nuts are the tightening portion of the coupling as it screws onto the coupling body and presses the ferrule or cutting ring onto the pipe.

Progressive Ferrule or Cutting Ring : The Cutting Ring or Ferrule is the main part or the Soul of the fitting as it crimps down on to the pipe and the hardened edge creates a cut and displaced burr onto the the pipe when being pressed down onto the pipe by the downward pressing action of the Progressive Nut. This ferrule or cutting ring now holds the pipe firmly and does not move or slip out when pressure is applied onto the hydraulic pipe assembly.

The single bite ferrule type coupling assembly is named after the ferrule that is used to hold the tubing or pipe in place. The ferrule is a small, cylindrical metal ring that is placed around the tubing or pipe and is crimped onto the surface of the tubing or pipe using a special crimping tool. This creates a secure, leak-proof connection between the tubing or pipe and the coupling assembly.

You may explore all the other DIN2353 hydraulic fittings like: Equal Elbow, Swivel Elbow, Bulkhead Union and more.

Advantages of Hydraulic Union or Straight Coupling Assembly

The hydraulic straight union DIN 2353 single bite ferrule type coupling assembly has numerous advantages over other types of hydraulic coupling assemblies. First, the assembly provides a secure, leak-proof joint that can withstand high pressures and vibrations. The ferrule also helps to ensure that the load is distributed uniformly across the surface of the tubing or pipe, reducing the chances of damage to the tubing or pipe.

Moreover, the single bite ferrule type coupling assembly is easy to install and does not require any specialized tools. The single bite assembly relies on a simple crimping tool to clamp the ferrule into place along the tubing or pipe, making it easy and convenient to do in any environment, be it in the field or a workshop. In addition, the hydraulic straight union DIN 2353 single bite ferrule type coupling assembly is easy to disconnect and reconnect. This feature is critical since it allows users to rework the system or replace faulty or worn-out components without having to dismantle much of the system.

The hydraulic straight union DIN 2353 single bite ferrule type coupling assembly is available in many sizes and materials to meet the needs of any hydraulic system. The couplings are available in sizes ranging from 4mm to 42mm and in materials such as steel, stainless steel, brass, and aluminum. The choice of materials depends on the intended use since different materials are suited to different use cases. In conclusion, the hydraulic straight union DIN 2353 single bite ferrule type coupling assembly is a reliable, leak-proof, and easy to install hydraulic coupling assembly that is commonly employed in high-pressure hydraulic systems.
