SS Manifold Valve

In instrumentation systems, controlling pressure is not just about opening or closing a valve. There are situations where you need to isolate, vent or equalize pressure, all within the same setup. This is where a SS Manifold Valve is used.

Instead of installing multiple separate valves, a manifold valve combines these functions into one compact unit. This not only saves space but also makes the system easier to manage.

At Hydrofit Engineers, we supply these as a reliable SS Manifold Valve supplier in India, mainly for applications where pressure instruments like transmitters and gauges are used. As a regular manifold valve dealer in Chennai, we often get requirements from industries setting up or upgrading their instrumentation lines.

From a practical point of view, these valves are used to simplify operations. For example, during maintenance, the operator can isolate the instrument, release pressure and carry out work without disturbing the entire system. This makes handling much safer and more convenient.

You will usually find different types like 2 way, 3 way and 5 way manifold valves, each designed for a specific purpose. The choice depends on the application and how much control is required in the system.

Material also matters here. Stainless steel construction ensures that the valve can handle pressure, corrosion and industrial conditions without frequent issues. This is why SS Manifold Valve fittings are preferred in most setups.

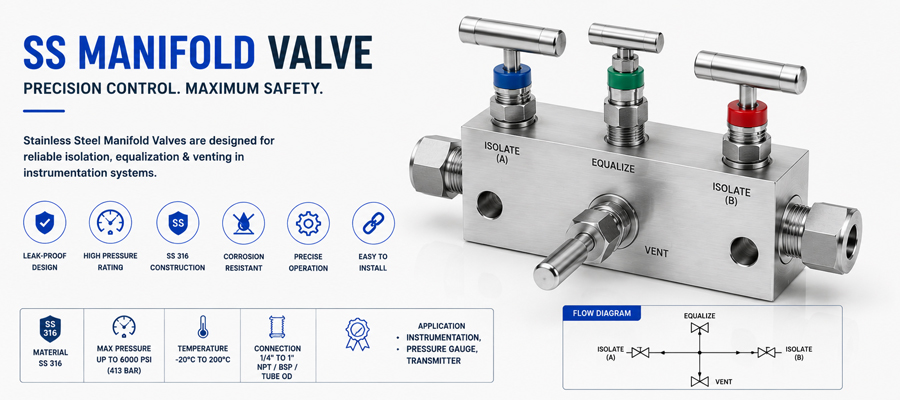

Construction of SS Manifold Valve

A typical SS Manifold Valve includes:

  • Stainless steel body (SS 304 / SS 316)
  • Multiple valve ports in a single block
  • Isolation, vent and equalizing valves
  • Threaded or flange type connections
  • Compact design for instrumentation setups

Each section is designed to perform a specific function within the same unit.

Types of SS Manifold Valve

Depending on application, common types include:

  • 2 Way Manifold Valve – Used for basic isolation
  • 3 Way Manifold Valve – Used for pressure equalizing and isolation
  • 5 Way Manifold Valve – Used in differential pressure transmitters

Each type serves a different level of control requirement.

Applications of SS Manifold Valve

These valves are widely used in:

  • Pressure transmitter installations
  • Instrumentation and control systems
  • Oil and gas industries
  • Chemical processing plants
  • Power plants and utilities

They are mainly used where pressure measurement and control are required.

Features:

✔ Combines multiple functions in one unit
✔ Reduces installation space and complexity
✔ Suitable for high pressure applications
✔ Stainless steel construction for durability
✔ Improves safety during maintenance
✔ Reliable sealing and performance

In many setups, using separate valves for each function makes the system bulky and difficult to manage. A SS Manifold Valve simplifies this by bringing everything into one compact block.

It also reduces the chances of leakage points, since fewer connections are involved. Over time, this improves system reliability.

Most users prefer selecting the type based on their instrument requirement, especially for pressure transmitters where proper equalization is important.



FAQs:

Q1. What is SS Manifold Valve used for?
It is used to control, isolate and manage pressure in instrumentation systems.

Q2. What is the difference between 2 way, 3 way and 5 way manifold valve?
They differ based on number of functions like isolation, venting and equalizing.

Q3. Is it suitable for high pressure applications?
Yes, it is designed for industrial high pressure systems.

Q4. Do you supply in Chennai and across India?
Yes, we are a trusted SS Manifold Valve supplier in India and active dealer in Chennai.
