SAE 100 R15 Hydraulic Hose
SAE 100 R15 is a type of hydraulic hose designed to operate under extremely high pressures. It is specifically engineered to handle tough and challenging environments, making it suitable for heavy-duty applications where other hoses might fail.
Design and Construction of SAE 100 R15 Hydraulic Hose

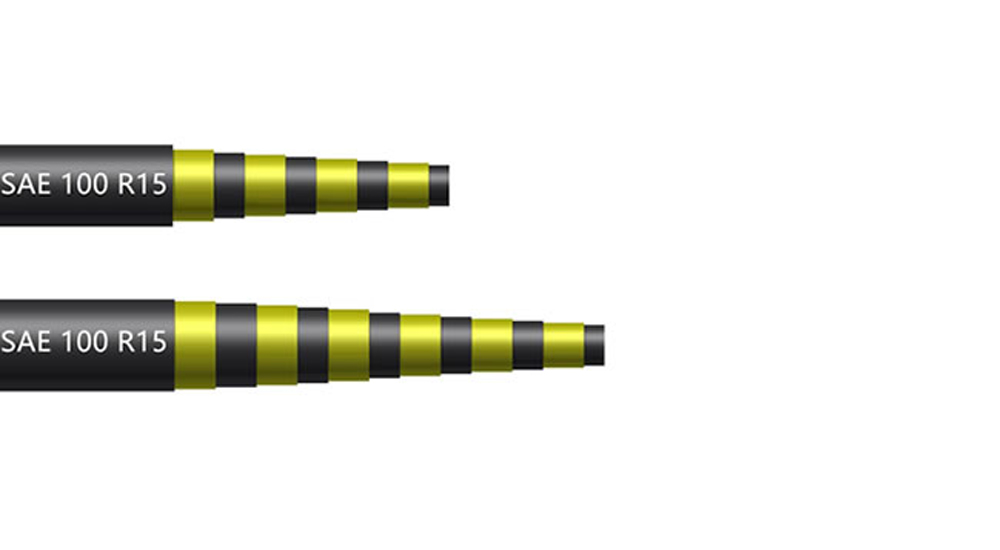

The SAE 100 R15 hydraulic hose is designed to withstand high pressures, thanks to its reinforced construction. Typically, the hose comprises the following layers:
- Inner Tube: Made from oil-resistant synthetic rubber, the inner tube provides a smooth surface for the hydraulic fluid to flow through, minimizing friction and preventing the hose’s degradation due to fluid exposure.
- Reinforcement: The most critical aspect of the SAE 100 R15 hose is its reinforcement layer. This hose is reinforced with four or six alternating layers of spiraled, high-tensile steel wire, providing exceptional strength and flexibility. The spiral construction allows the hose to withstand high pressure without compromising flexibility.
Cover: The outer cover is typically made from an abrasion-resistant synthetic rubber. This layer protects the hose from external damage, such as cuts, abrasion, and environmental factors like ozone and UV radiation. The cover also resists oil, making the hose durable in harsh operating conditions
Key Features
- High Pressure Tolerance: The SAE 100 R15 hose is engineered to handle pressures up to 6000 psi (414 bar), depending on the hose’s size. This makes it ideal for high-pressure hydraulic applications where safety and reliability are paramount.
- Temperature Range: This hose can operate efficiently in a wide temperature range, typically from -40°C to +121°C (-40°F to +250°F), ensuring performance in extreme weather conditions.
- Excellent Flexibility: Despite its robust construction, the SAE 100 R15 hose remains flexible, allowing it to be routed through complex hydraulic systems without kinking or causing strain on the connections.
- Compatibility with Fluids: The hose is compatible with a wide range of hydraulic fluids, including petroleum-based, water-glycol, and water-oil emulsions. This versatility makes it suitable for various industrial applications.
Applications
The SAE 100 R15 hydraulic hose is commonly used in applications where high pressure and robust performance are essential. Some of the typical applications include:
- Heavy Construction Equipment: Excavators, bulldozers, and cranes require hydraulic hoses that can handle high pressures and harsh environments. The SAE 100 R15 is an ideal choice for these machines.
- Mining Equipment: The mining industry demands durable hydraulic hoses that can withstand high pressures and abrasive conditions. The SAE 100 R15 is often used in hydraulic systems for mining trucks, drills, and other equipment.
- Industrial Machinery: Hydraulic presses, injection molding machines, and other industrial equipment that operates under high pressure benefit from the strength and durability of the SAE 100 R15 hose.
- Marine Applications: In marine environments, where corrosion resistance and high-pressure tolerance are crucial, the SAE 100 R15 hose is a reliable choice.
Advantages
- Reliability: The multi-layered steel wire reinforcement ensures that the hose can handle high-pressure applications without failure, reducing downtime and maintenance costs.
- Safety: The high-pressure rating and robust construction make the SAE 100 R15 hose a safe option for critical hydraulic systems, minimizing the risk of hose bursts and hydraulic leaks.
- Longevity: The abrasion-resistant cover and oil-resistant inner tube contribute to the hose’s long service life, even in demanding environments.
- Versatility: With compatibility across a range of hydraulic fluids and operating conditions, the SAE 100 R15 hose is versatile and suitable for various industries.
The SAE 100 R15 hydraulic hose stands out as a high-performance solution for industries that demand reliability, safety, and durability in their hydraulic systems. Its ability to handle extreme pressures, coupled with its robust construction, makes it a preferred choice for heavy-duty applications. Whether in construction, mining, or industrial machinery, the SAE 100 R15 hose ensures optimal performance, safety, and longevity, making it a valuable component in modern hydraulic systems.
