Quick Release Couplings (QRC): Reliable Hydraulic and Pneumatic Connections
Quick Release Couplings (QRCs) — are also referred to as Quick Couplers, Quick Connect Couplings, or Quick Disconnect Couplings. These QRCs are important components used in hydraulic and pneumatic systems. The advantage of using them are that they enable fast, leak-free, and tool-free connection and disconnection of oil, water and air lines.
At Hydrofit Engineers, we supply a complete range of Hydraulic Quick Release Couplings, Pneumatic Quick Connect Couplers, and Non-Spill QRCs. These are designed for high performance, safety, and reliability for all the relevant applications
What is a Quick Release Coupling (QRC)?
A Quick Release Coupling (QRC coupling) is a connector designed to join or separate hydraulic or pneumatic lines quickly and conveniently without causing any leakage of fluid or air.

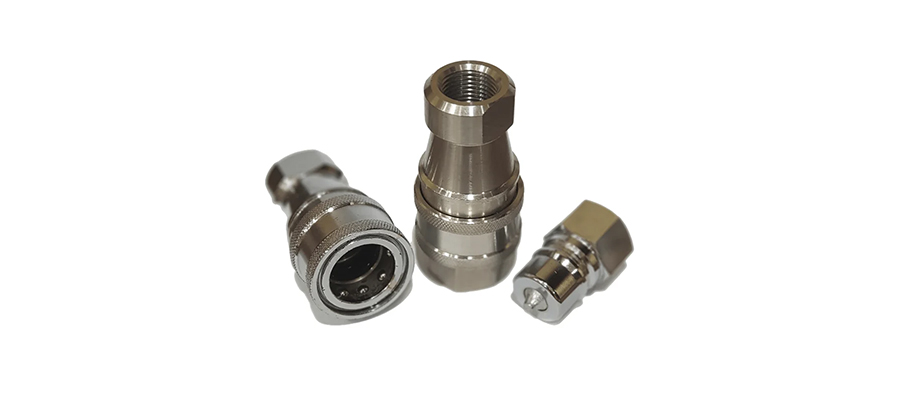

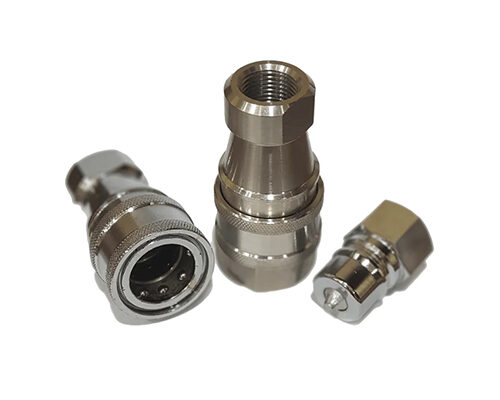

The Quick Connector generally consists of two main parts — the male plug and the female socket (coupler). Check Valves are built within the Coupler and the plug. When the two are connected, the inbuilt check valves open to allow the flow of fluid.. When disconnected , the valves close automatically, ensuring that there is no spills of the media in the line thus maintaining the integrity of the system.
The Quick Release coupling are also know by the following names in the industry :
- Quick Coupler
- Quick Connect Coupling
- Quick Disconnect Coupling
- QRC Coupling
- QRC Connector
- Hydraulic Quick Release Coupling

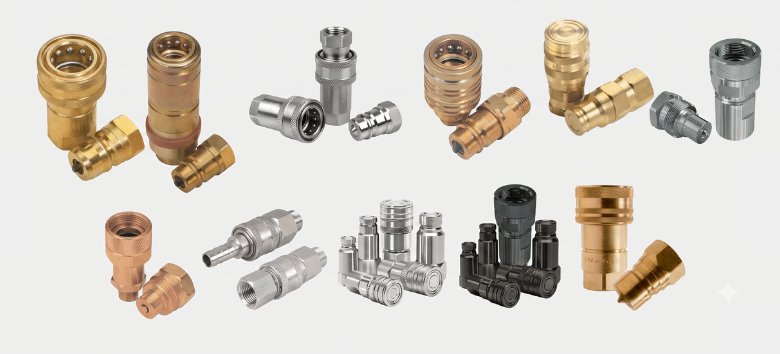

Types of Quick Release Couplings (QRCs)
Push to Connector Couplings
Screw To connect Couplings
Twist to Connect Couplings

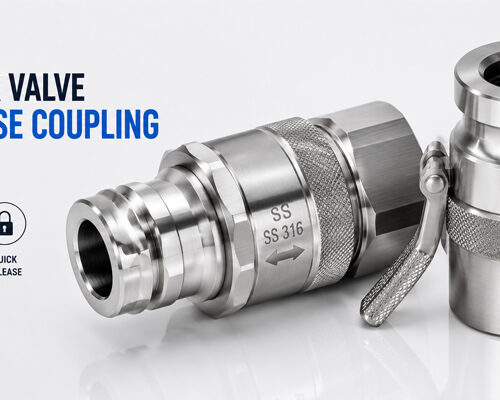

Single Check Valve Quick Release Couplings
Double Check Valve Quick Couplings
Straight through Quick Couplers

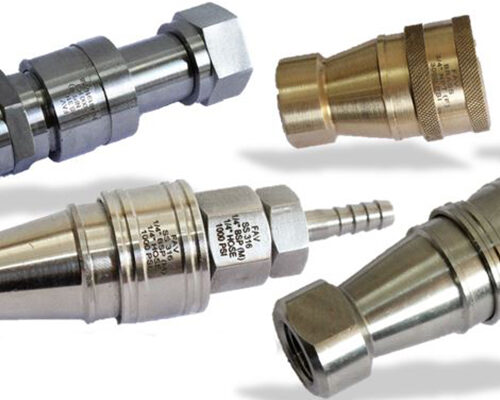

Material of Construction of QRCs
Quick Release Couplings are generally made of the following materials :
- Carbon Steel
- Stainless Steel
- Brass
Types of Quick Release Couplings according to usage
Quick release couplings come in different types and configurations, each type designed for specific use and for a specific industry

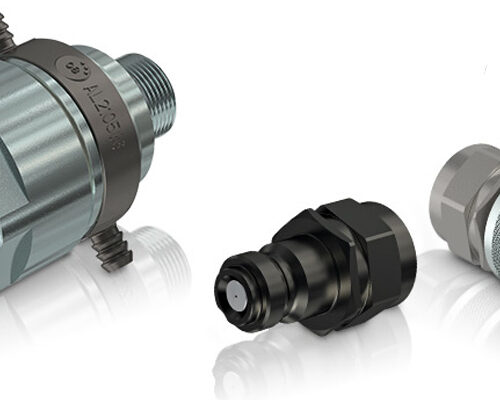

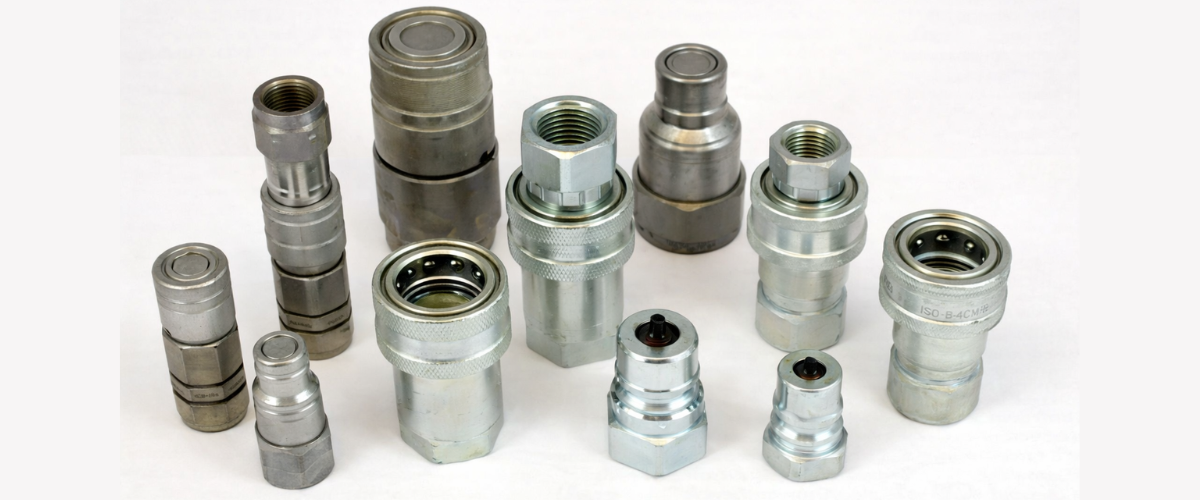

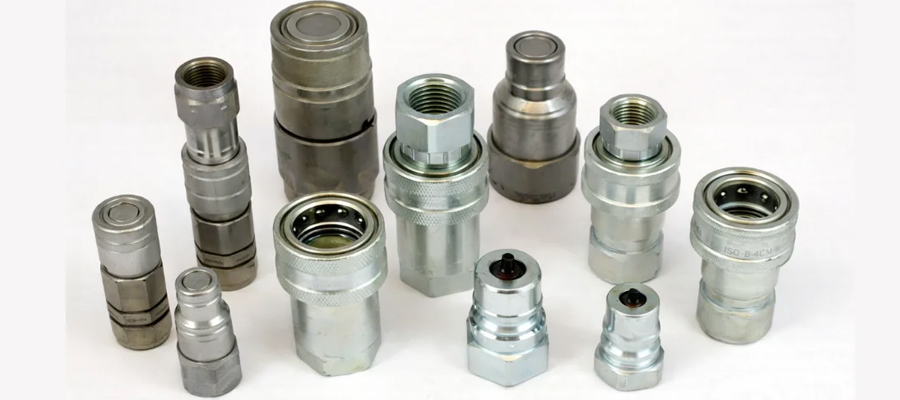

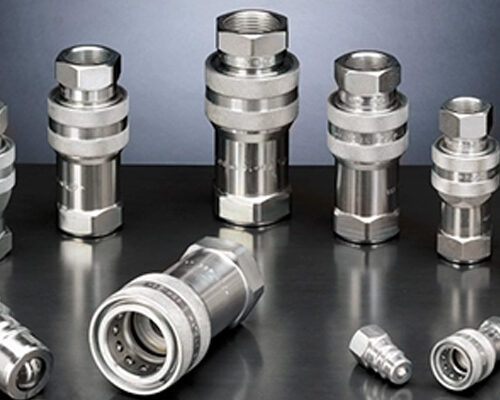

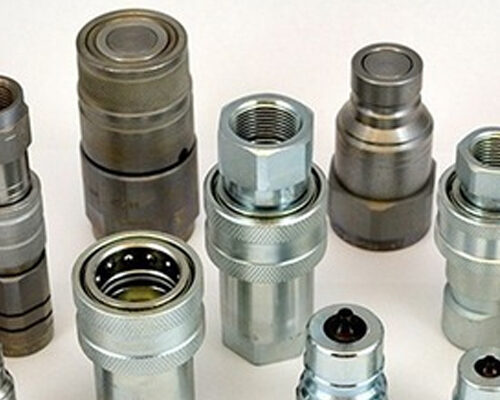

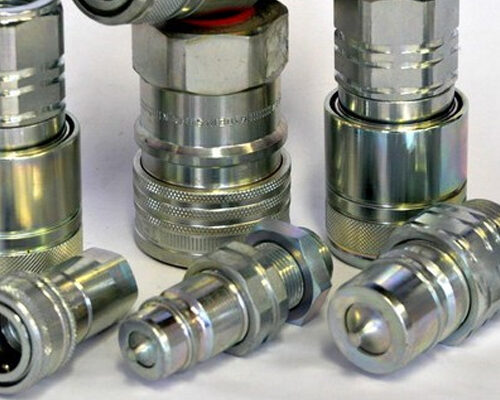

Hydraulic Quick Release Coupling
Hydraulic Quick Release Couplings are are designed for Hydraulic Systems. These operated under high pressure and are built to handle the requirements of fluid transfer in hydraulic lines
Hydraulic Quick Release Couplings are are designed for Hydraulic Systems. These operated under high pressure and are built to handle the requirements of fluid transfer in hydraulic lines
Quick release couplings for hydraulic lines, also known as hydraulic quick couplings or hydraulic quick disconnects, are essential components in various industries. They provide a convenient and efficient way to connect and disconnect hydraulic lines, allowing for quick changes, maintenance, and repairs. Here are some common types and applications of quick release couplings for hydraulic systems:

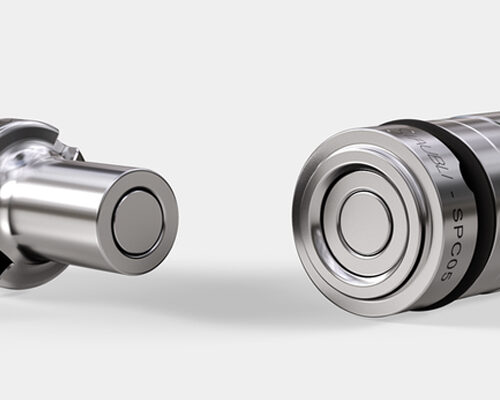

Flat Face Couplings
- Flat face couplings are commonly used in hydraulic applications where minimizing fluid loss during connection and disconnection is crucial. They are suitable for applications in construction equipment, agricultural machinery, and industrial hydraulic systems.
Threaded Quick Couplings
- Threaded hydraulic quick release couplings feature threaded connections that provide a secure and reliable seal. They are used in applications where a strong and leak-free connection is required, such as in hydraulic cylinders and other critical hydraulic components.
Push To Connect Quick Couplings
- Threaded hydraulic quick release couplings feature threaded connections that provide a secure and reliable seal. They are used in applications where a strong and leak-free connection is required, such as in hydraulic cylinders and other critical hydraulic components.
Screw To Connect Couplings
Screw-to-connect couplings are threaded couplings that can be easily connected and disconnected by hand. They are suitable for applications where a threaded connection is preferred, and frequent changes are necessary
High Pressure Quick Couplings
- Designed to handle high-pressure hydraulic systems, these couplings are used in applications where the hydraulic fluid is under significant pressure. They are common in heavy machinery, construction equipment, and industrial hydraulic systems.
Quick Connect Couplings for Power Take-Off (PTO) Systems
- PTO systems in agricultural and construction machinery often use quick release couplings for connecting hydraulic lines to power various implements. These couplings allow for efficient and quick changes between different tools or attachments.
Diagnostic Quick Couplings
- Diagnostic couplings are designed for use with hydraulic pressure gauges and diagnostic equipment. They facilitate the quick and secure connection of diagnostic tools to measure pressure and diagnose issues in hydraulic systems.
Quick Connect Couplings for Multi Coupling Systems
- Multi-coupling systems allow for the simultaneous connection and disconnection of multiple hydraulic lines with a single action. They are commonly used in applications where multiple hydraulic functions need to be engaged or disengaged rapidly.
ISO 16028 Quick Couplings
- ISO 16028 couplings are a standard set by the International Organization for Standardization (ISO) for flat face hydraulic couplings. These couplings are widely used in various industries, including agriculture, construction, and manufacturing.
Quick Couplings for Automotive Hydraulic Systems
- Quick release couplings are used in automotive hydraulic systems for applications such as brake systems, power steering, and suspension systems. They facilitate efficient maintenance and repairs in automotive hydraulic systems.
Quick Connect Couplings for Mining Equipment
- Mining machinery relies on hydraulic systems for various functions, and quick release couplings are used to connect and disconnect hydraulic lines in equipment such as excavators, loaders, and drilling rigs.
Quick Fit Couplings for Injection Moulding Machines
- Hydraulic systems in injection molding machines use quick release couplings for connecting and disconnecting hydraulic lines. This allows for efficient mold changes and maintenance in the manufacturing process.
Quick Connect Couplings for Marine Hydraulic Systems
- Quick release couplings are utilized in marine applications for connecting hydraulic lines on ships, boats, and offshore platforms. They contribute to the efficiency and reliability of hydraulic systems in maritime environments.
When selecting quick release couplings for hydraulic lines, it is crucial to consider factors such as pressure ratings, compatibility with hydraulic fluids, material durability, and the specific requirements of the hydraulic system. Proper maintenance and regular inspections are also essential to ensure the continued reliability and safety of hydraulic quick release couplings

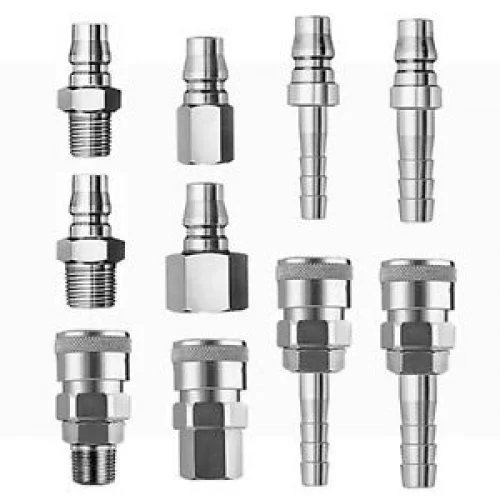

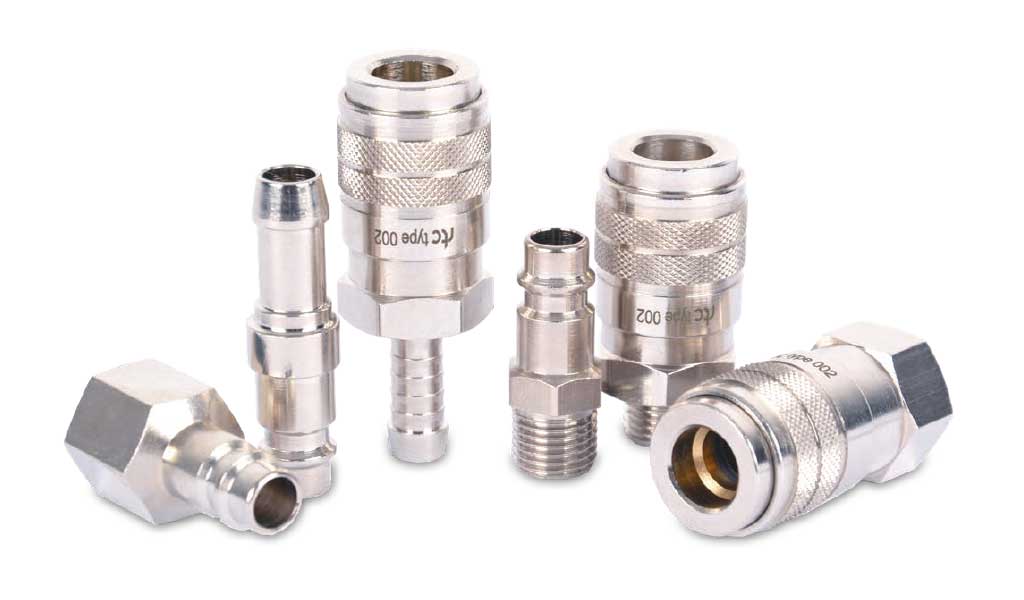

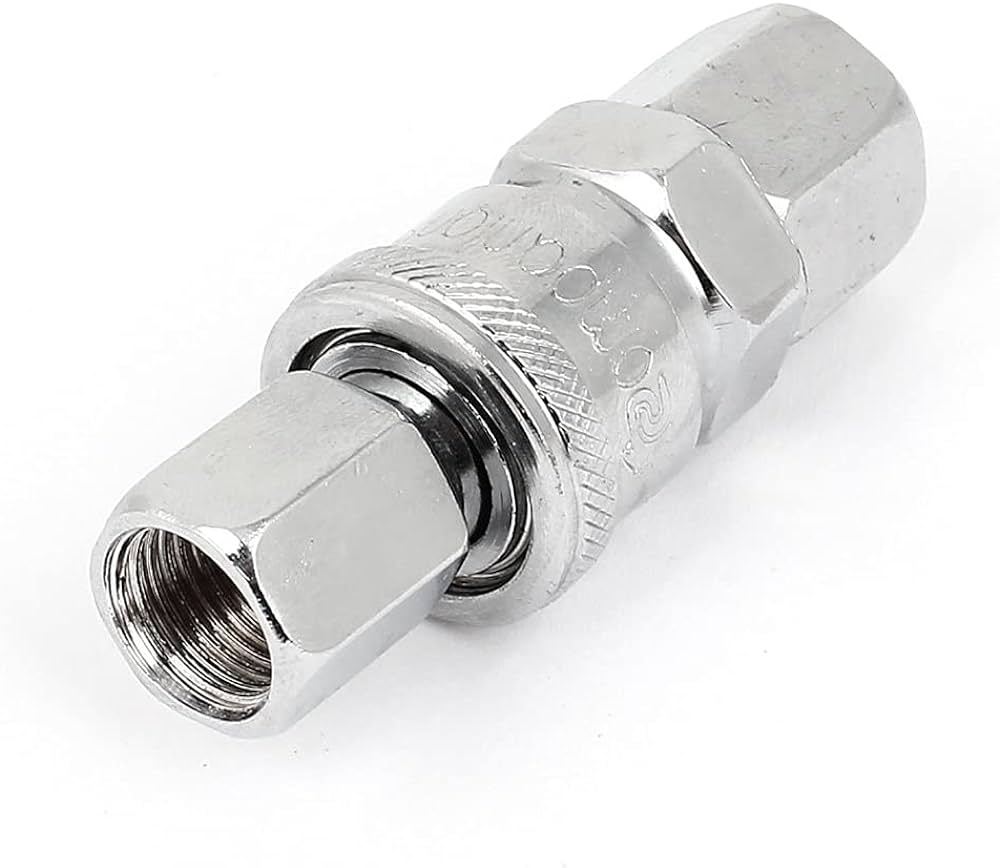

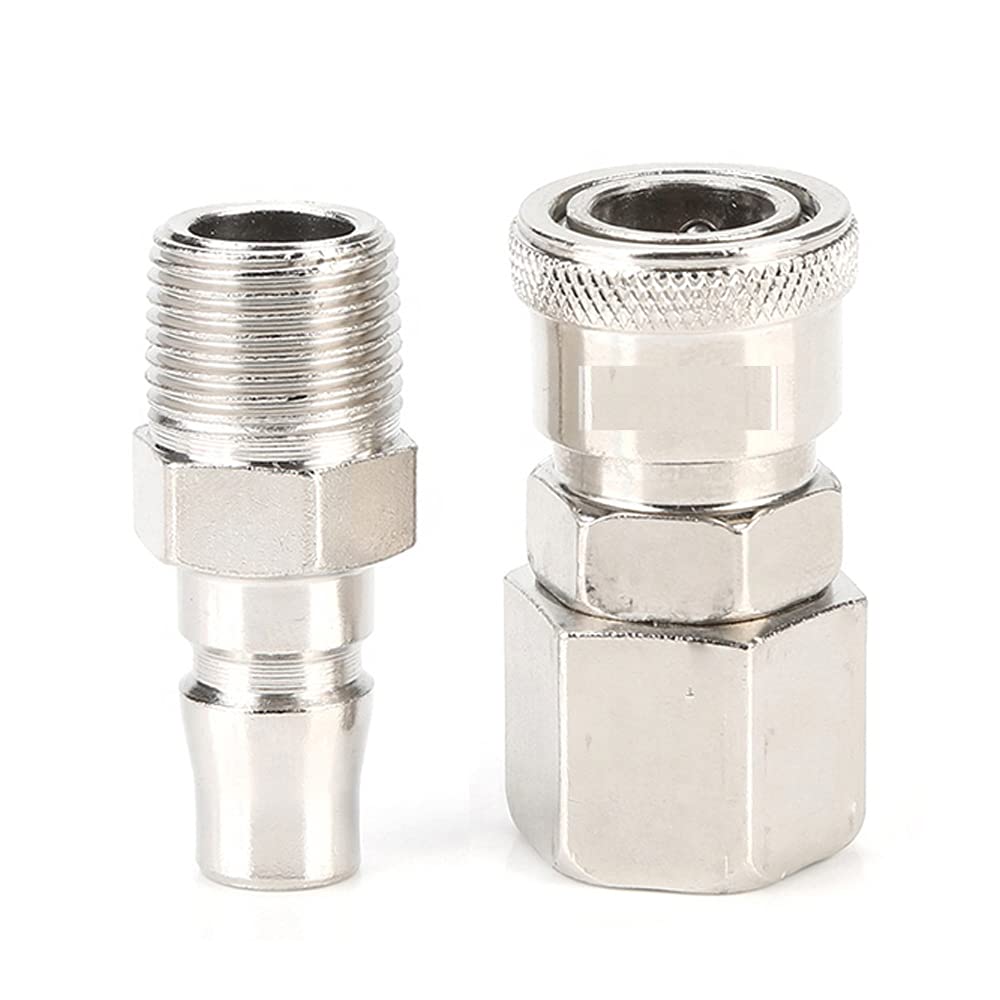

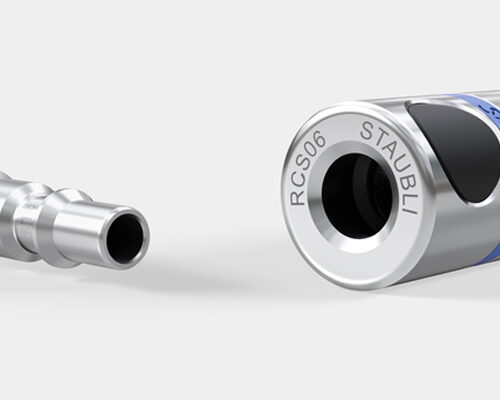

Pneumatic Quick Release Couplings

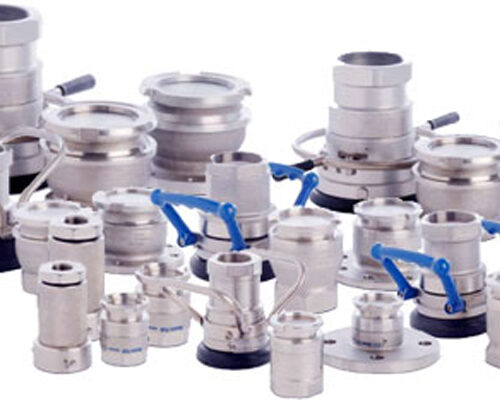

Quick Release Couplings for Water
In Agricultural and Water applications QRCs are used in the following areas :
Irrigation Systems
Gardening and Landscaping
Fire fighting Equipment
Hydroponic Systems
Quick release couplings play a crucial role in various agricultural applications, offering efficiency, convenience, and flexibility in fluid handling systems. These couplings enable rapid connection and disconnection of hoses and equipment, allowing farmers to save time and easily adapt to different tasks. Here are some common uses of quick release couplings in agriculture
Quick release couplings designed specifically for water applications are common and serve various purposes in different industries. These couplings are engineered to meet specific requirements related to water flow, pressure, and environmental conditions. Here are some water-related applications for quick release couplings:
When selecting quick release couplings for agricultural applications, factors such as material durability, resistance to environmental conditions, ease of use, and compatibility with hydraulic fluids or other substances being transferred should be considered. Additionally, it’s important to ensure that the couplings comply with relevant industry standards to guarantee safety and reliability in the agricultural setting
Working Principle of Quick Couplers
The working of a Quick Coupler is simple yet effective:
- Alignment: The male plug and female socket are aligned and pushed together.
- Engagement: The Coupler and adaptor are engaged by Locking balls and pull sleeves to secure the connection.
- Flow: When the Internal valves open, hydraulic oil, air, or fluid pass through.
- Disconnection: When the engaging sleeve is pulled the connection is released ; the inbuilt valves close immediately and the flow is cut.
Thus QRC Couplings play and important role in systems where hoses or tools need to be frequently changed, thus safety, efficiency, and saving of valuable time.
Features and Advantages of Quick Release couplings
Key Features:
- These are designed to be leak free and non spill during operation
- They enable quick, tool-free connection and disconnection
- Dust caps provided for contamination protection
- These are Compact in design and durable in construction
- These are available in maerials like carbon steel, Stainless Steel and brass
- They are suitable for hydraulic, pneumatic, and fluid transfer systems
Advantages:
- They minimize machine downtime
- Prevents loss of fluid and contamination of line
- Improves operator safety
- Enhances system reliability
- They are easy to maintain and have long service life
Material, Application and pressure rating
Material | Applications | Pressure Range |
Carbon Steel | General hydraulic applications | Up to 350 bar |
Stainless Steel (SS 304 / 316) | Corrosive media or environments | Up to 400 bar |
Brass | Pneumatic lines and low-pressure applications | Up to 50 bar |
The above mentioned QRCs can be supplied in sizes : ¼” to 2” BSP or NPT Threads
Why Choose Hydrofit Engineers for Quick Release Couplings
Hydrofit Engineers is a trusted manufacturer, dealer and supplier of Quick Release Couplings (QRCs) in India. They offer products that meet global standards like ISO 7241A and B and ISO 16028 standards and also manufacture and supply QRCs as per customer needs.
Our Range Includes:
- Hydraulic QRC Couplings (ISO A, ISO B, Flat Face)
- Pneumatic Quick Couplers and Connectors
- High Pressure Hydraulic Quick Couplings (up to 700 bar)
- Stainless Steel and Brass QRCs
- Non-Spill and Flush Face QRCs
Why Customers Prefer Us:
- We have a Wide range of standard and custom made models of QRCs
- Our products are of Reliable quality and ISO-certified
- We go by the policy – competitive pricing and prompt delivery
- We have over 35 years of expertise in hydraulic and pneumatic products
Our QRC Couplings are widely used by OEMs, machine builders, and industrial plants across India.
Applications of Quick Release Couplings
Quick release couplings, also known as quick connect or quick disconnect couplings, find applications in a variety of industries due to their ability to provide fast, secure, and efficient connections and disconnections. Here are some common applications:
Hydraulic Systems:
- Used for connecting and disconnecting hydraulic hoses in construction equipment, agricultural machinery, and industrial hydraulic systems. Quick release couplings facilitate rapid changes and maintenance.
Pneumatic Systems:
- Employed in systems that use compressed air, such as manufacturing plants, automotive assembly lines, and pneumatic tools. Quick release couplings enable fast connections and disconnections of air lines.
Automotive Industry:
- Utilized for connecting various fluid lines, including fuel lines, brake lines, and air conditioning systems in vehicles. Quick release couplings make it easier to service and repair different automotive components.
Medical Devices:
- Found in medical applications for connecting hoses and tubing in oxygen delivery systems, anesthesia machines, and other medical equipment. Quick release couplings ensure fast and secure connections for critical healthcare applications.
Aerospace Industry:
- Used in aerospace applications for connecting fluid lines in aircraft, spacecraft, and ground support equipment. Quick release couplings assist in efficient maintenance and repair processes.
Chemical and Petrochemical Industries:
- Employed in chemical processing plants and refineries for connecting hoses and pipes carrying various fluids. Quick release couplings help prevent leaks and enable the quick change of equipment.
Water and Irrigation Systems:
- Applied in agriculture for connecting hoses and pipes in irrigation systems. Quick release couplings allow for the efficient and rapid setup of irrigation equipment.
Rail and Transportation:
- Found in the rail industry for connecting brake lines and other pneumatic systems in trains and other railway vehicles. Quick release couplings contribute to the safety and reliability of rail operations.
Manufacturing and Industrial Processes:
- Used in various manufacturing processes for connecting fluid lines in industries such as plastics, textiles, and metalworking. Quick release couplings facilitate efficient production line setups.
Construction Equipment:
- Employed in construction machinery for connecting and disconnecting hydraulic lines, allowing for quick changes of attachments or tools. This enhances the versatility and productivity of construction equipment.
Mining Industry:
- Used in mining equipment for connecting hydraulic lines, facilitating the quick replacement or maintenance of components in challenging mining environments.
Marine and Offshore Applications:
- Found in marine and offshore industries for connecting fluid lines on ships, offshore platforms, and other maritime equipment. Quick release couplings simplify maintenance tasks in maritime environments.
Food and Beverage Industry:
- Applied in the food and beverage sector for connecting hoses in processing and packaging equipment. Quick release couplings are designed to meet hygiene standards and facilitate easy cleaning.
Energy Sector:
- Utilized in the energy industry, including power plants, for connecting fluid lines in hydraulic and pneumatic systems. Quick release couplings aid in maintenance and system reliability.
These applications highlight the versatility of quick release couplings across diverse industries, where their ease of use and efficiency in connecting and disconnecting fluid or gas lines are highly beneficial
