A single-acting pneumatic cylinder is a type of actuator that uses compressed air to produce linear motion in one direction. It typically consists of a piston and cylinder arrangement with a single air inlet, and the return stroke is achieved through a mechanical spring or an external force. Here’s a detailed overview of single-acting pneumatic cylinders, including their features, working principles, and applications:
Features of Single-Acting Pneumatic Cylinders:
- Simplicity:
- Single-acting cylinders are relatively simple in design compared to their double-acting counterparts, making them cost-effective and easy to maintain.
- One-Way Motion:
- These cylinders provide force and motion only in one direction, typically the extending stroke. The return stroke is achieved by the force of a spring or an external load.
- Spring Mechanism:
- Many single-acting cylinders use a mechanical spring to return the piston to its original position after the air pressure is released.
- Compact Design:
- Single-acting cylinders are often more compact than double-acting cylinders, making them suitable for applications with limited space.
- Cost-Effective:
- Due to their simpler design, single-acting cylinders are generally more cost-effective than double-acting cylinders.

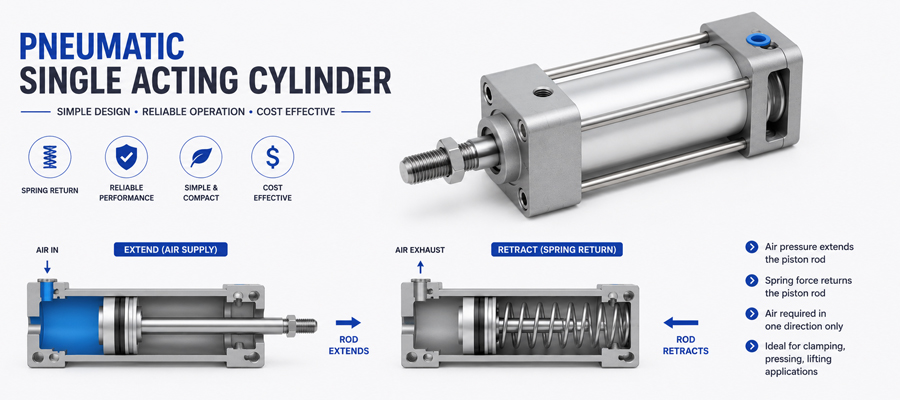

Working Principles of Single-Acting Pneumatic Cylinders:
- Extension Stroke:
- Compressed air is introduced into the cylinder through the inlet port, pushing the piston in the extending direction.
- Retraction Stroke:
- In the absence of air pressure, the spring or external force acts on the piston, causing it to retract to its original position.
- Spring Return:
- The spring mechanism provides a mechanical force that assists in returning the piston during the retraction stroke.
- Directional Control:
- Directional control valves are used to regulate the flow of compressed air into the cylinder, controlling the extension and retraction of the piston.
- Considerations and Maintenance:
- Spring Adjustment:
- Proper adjustment of the spring force is crucial to achieving the desired return stroke.
- Seal Integrity:
- Regular inspection of seals is important to prevent air leaks and ensure efficient operation.
- Air Quality:
- Clean and dry compressed air is essential for the longevity of the cylinder and its components.
- Lubrication:
- Lubrication of moving parts, especially the piston and seals, is necessary for smooth operation and to prevent wear.
Single-acting pneumatic cylinders offer a reliable and cost-effective solution for applications where force is required in only one direction. Their simplicity, coupled with ease of maintenance, makes them suitable for a wide range of industrial applications. However, it’s crucial to choose the right type of cylinder based on the specific requirements of the application. Regular inspection and maintenance are key to ensuring the continued performance and longevity of the cylinder.
Applications of Single Acting Pneumatic Cylinders
Single-acting pneumatic cylinders are commonly used in various industrial applications where the actuator needs force in only one direction. The force is typically generated by compressed air acting on one side of the piston. Here are some common applications of single-acting pneumatic cylinders:
- Lift Assist Systems: Single-acting cylinders are used in lift assist systems to provide controlled lifting or lowering of loads. The force is often used to counteract gravity during the lifting process.
- Material Handling Equipment: In applications where the load needs to be lifted or lowered, such as in conveyor systems or palletizers, single-acting cylinders are utilized to provide the necessary force.
- Pressing and Riveting: Single-acting cylinders are suitable for tasks like pressing or riveting where force is required in one direction. The cylinder can provide the necessary pressure for these operations.
- Clamping Systems: In clamping systems, single-acting cylinders are used to apply force to hold workpieces in place during machining, welding, or assembly processes.
- Door and Gate Opening/Closing Systems: Single-acting cylinders are employed in door and gate systems to provide the force needed to open or close them. This is common in applications like automated doors in factories or warehouses.
- Emergency Brake Systems: Some pneumatic braking systems use single-acting cylinders to apply force to activate brakes in emergency situations.
- Furniture Manufacturing: In the production of furniture, single-acting cylinders can be used for tasks such as pressing, lifting, or tilting components during assembly.
- Pneumatic Tools: Certain pneumatic tools, like air hammers or chisels, use single-acting cylinders to provide the striking force in one direction.
- Waste Compaction Systems: Single-acting cylinders are used in waste management equipment for compacting waste materials. The cylinder provides the force needed to compress the waste.
- Feeding Mechanisms: In applications where materials need to be fed in a specific direction, such as in printing or packaging machinery, single-acting cylinders can be used to control the feeding mechanism.
- Automatic Gates and Barriers: Single-acting cylinders are employed in automatic gate and barrier systems, providing the force to open or close these barriers.
- Pneumatic Springs: In some applications, single-acting cylinders are used as pneumatic springs to provide a controlled return force or assistance in lifting.
- Automotive Applications: Single-acting cylinders are used in certain automotive applications, such as convertible top mechanisms or in some braking systems.
- Conveyor Systems: In conveyor systems, single-acting cylinders can be used to control the movement of conveyor belts, assisting in material handling processes.
- Emergency Systems in Aircraft: Single-acting cylinders are used in emergency systems, such as deploying emergency exits or activating safety features in aircraft.
These applications highlight the versatility of single-acting pneumatic cylinders in providing force in one direction, making them suitable for various tasks across different industries.
