Hydraulic hoses are an essential component in many industrial applications that require the transfer of fluids or gases. High pressure hydraulic hoses are used to transport high-pressure fluids such as water, oil, or hydraulic fluid. One of the most common types of high pressure hydraulic hoses is the Hydraulic hose 4SH.
The Hydraulic hose 4SH is a high-pressure hydraulic hose that is designed to operate in extreme temperatures and harsh environments. The 4SH stands for four layers of reinforcement, which give the hose its strength and durability. The innermost layer of the hose is made of synthetic rubber, which provides a smooth surface for the fluid to flow through. The second layer is made of steel wire, which provides the hose with its strength and flexibility. The third layer is also made of steel wire, but it is wound in the opposite direction to the second layer, which provides additional strength and resistance to deformation. The fourth and final layer is an outer layer of synthetic rubber that protects the hose from external damage and corrosion.
The Hydraulic hose 4SH has a working pressure of up to 6,095 psi and a temperature range of -40°C to +121°C (-40°F to +250°F). It is compatible with a wide range of hydraulic fluids, including mineral oil, synthetic oil, and biodegradable hydraulic fluids. The hose is available in a range of sizes, from 3/8″ to 2″, and is designed to be used with a variety of hydraulic fittings and connectors.
The term “4SH” refers to a specific type of hydraulic spiral hose. In the context of hydraulic hoses, “4SH” stands for a four-spiral wire reinforcement design, providing enhanced strength and resistance to high-pressure conditions. Let’s explore the characteristics, construction, applications, and advantages of hydraulic spiral hoses with a 4SH designation
Characteristics of Hydraulic Hose - 4SH
- Wire Reinforcement:
- 4SH hoses have four layers of high-tensile steel wire spirals wound around the inner tube.
- The multiple layers of reinforcement contribute to the hose’s ability to handle extremely high-pressure conditions.
- Pressure Rating:
- 4SH hoses are designed for high-pressure hydraulic applications.
- Pressure ratings typically exceed those of hoses with lower spiral counts.
- Flexibility:
- While not as flexible as hoses with fewer spiral layers, 4SH hoses are engineered to provide a balance between flexibility and strength.
- The design allows for ease of handling and installation in hydraulic systems.
- Temperature Range:
- Hydraulic spiral hoses with a 4SH designation are designed to operate within specified temperature ranges, ensuring performance in various environmental conditions.
- Inner Tube:
- The inner tube is made of synthetic rubber or other materials compatible with the hydraulic fluid used in the system.
- It forms the innermost layer, in direct contact with the hydraulic fluid.
- Outer Cover:
- The outer cover is typically made of synthetic rubber or a rubber-like compound that provides protection against abrasion, weather, and external elements.

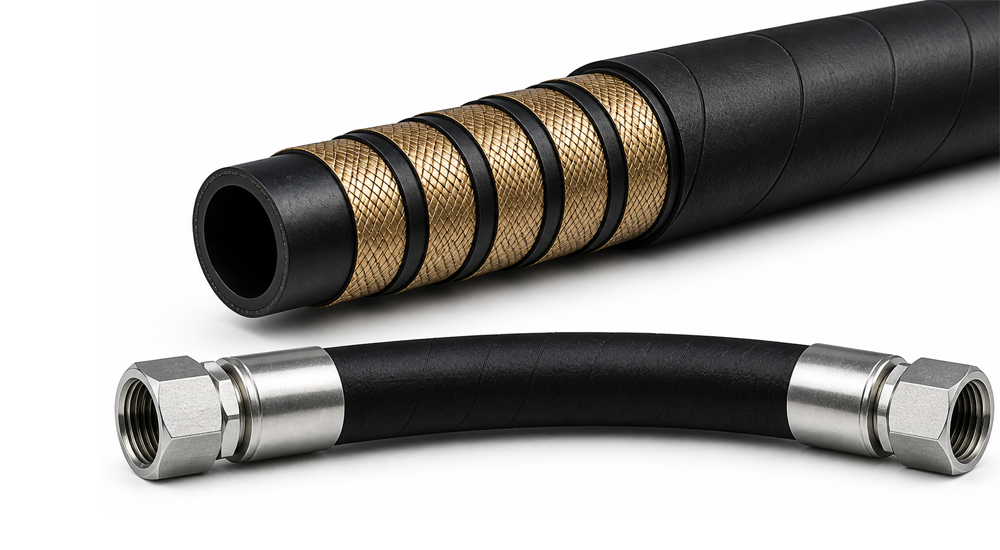

Construction of Hydraulic Hose - 4SH
- Inner Tube:
- Made of synthetic rubber or other materials resistant to the hydraulic fluid being transmitted.
- Provides a smooth and consistent flow path for the hydraulic fluid.
- Reinforcement:
- Four layers of high-tensile steel wire spirals tightly wound around the inner tube.
- The spiral reinforcement provides strength, stability, and resistance to pressure.
- Outer Cover:
- Made of synthetic rubber or a rubber-like compound.
- Protects the hose from external factors, enhances durability, and provides resistance to abrasion.
- Fittings and End Connections:
- Equipped with fittings and end connections designed for high-pressure applications.
- Ensures a secure connection to other hydraulic system components.
Applications of Hydraulic Hose 4SH
The spiral hose 4SH is used in a wide range of industrial applications that require the transport of high-pressure fluids
The spiral hose 4SH is used in a wide range of industrial applications that require the transport of high-pressure fluids
Construction Industry
The construction industry uses the hydraulic hose Spiral 4SH to power hydraulic tools such as jackhammers, saws, and breakers. The high-pressure capabilities of the hose make it ideal for powering these tools, which require a lot of force to operate. The 4SH hose is also used to transport hydraulic fluid to heavy machinery such as excavators, cranes, and bulldozers.
Agriculture Industry
The agriculture industry uses the spiral hose 4SH to power agricultural machinery such as tractors, combines, and harvesters. The high-pressure capabilities of the hose make it ideal for powering the hydraulic systems that operate these machines. The 4SH hose is also used to transport hydraulic fluid to irrigation systems, which require a lot of pressure to operate.
Oil and Gas Industry
The oil and gas industry uses the hydraulic hose 4SH to transport high-pressure fluids such as crude oil, natural gas, and drilling mud. The high-pressure capabilities of the hose make it ideal for use in drilling operations, where high-pressure fluids need to be transported from the wellhead to the surface. The 4SH hose is also used in hydraulic fracturing operations, where high-pressure fluids are used to fracture rock formations to release natural gas or oil.
Mining Industry
The mining industry uses the hydraulic hose spiral 4SH to power hydraulic machinery such as drills, excavators, and loaders. The high-pressure capabilities of the hose make it ideal for powering the hydraulic systems that operate these machines. The 4SH hose is also used to transport hydraulic fluid to underground mining operations, where high-pressure fluids are used to power drilling and blasting operations.
Transportation Industry
The transportation industry uses the hydraulic hose spiral 4SH to power hydraulic systems on commercial vehicles such as trucks, buses, and trailers. The high-pressure capabilities of the hose make it ideal for powering the hydraulic systems that operate the brakes and steering
Advantages of Hydraulic Spiral Hose - 4SH
- High-Pressure Resistance:
- 4SH hoses are specifically designed to handle extremely high-pressure conditions, making them suitable for demanding applications.
- Strength and Durability:
- The four-spiral wire reinforcement provides strength and stability, contributing to the hose’s overall durability.
- Versatility:
- Suitable for a range of applications across different industries, providing versatility in hydraulic system design.
- Ease of Handling:
- While robust, 4SH hoses are designed to offer sufficient flexibility for ease of handling and installation.
