Hydraulic Pipe Fittings (BSP thread)

In a hydraulic system, there are many components such as valves, pumps, return line filters, suction strainers, hydraulic hoses, and manifolds, all of which need to be connected very safely. Hydraulic Pipe Fittings with BSP threads are used to join these components and are also known as Hydraulic Connectors and Adapters.

BSP threaded hydraulic pipe fittings have male and female threaded ends, They are used to connect valves, pumps, hoses, and manifolds by simply screwing them together. This connection provides a strong and secure joint in high-pressure hydraulic systems.

Difference between BSP Hydraulic Pipe Fittings and DIN 2353 Ferrule Fittings

DIN 2353 Ferrule Fittings are mainly used to connect Hydraulic Seamless Tubes to other hydraulic components, forming high pressure tube lines. On the other hand, BSP Hydraulic Pipe Fittings are used for threaded connections.

Both BSP pipe fittings and ferrule fittings are often used together in a complete hydraulic system so that the complete hydraulic circuit can work properly.

Design and Pressure capacity of Hydraulic BSP Pipe Fittings

Hydraulic BSP Pipe Fittings are designed for high pressure applications. Straight fittings are typically made from hexagon bar stock, while elbows, tees, and other fittings are made from flat or square bar stock.

Depending on the design and application, these BSP Hydraulic Pipe Fittings are generally capable of handling pressures ranging from 400 bar to 700 bar.

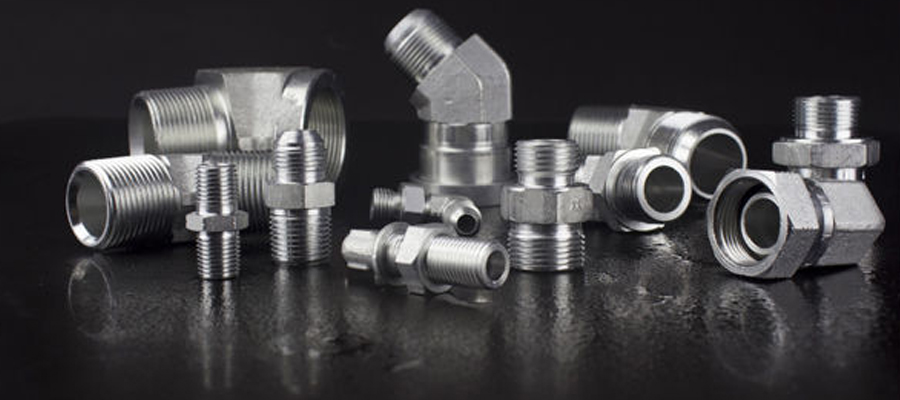

Range of BSP Thread Hydraulic Pipe Fittings

The range of Hydraulic BSP Pipe Fittings includes:

• Hydraulic Straight Connector – Male to Male
• Hydraulic Male–Female Connector – Female to Male
• Hydraulic Swivel Connector – Male to Female
• Hydraulic Female Hexagon Socket
• Hydraulic Dummy Plugs – Hex Plugs, Allen Plugs और Allen Plugs with Collar

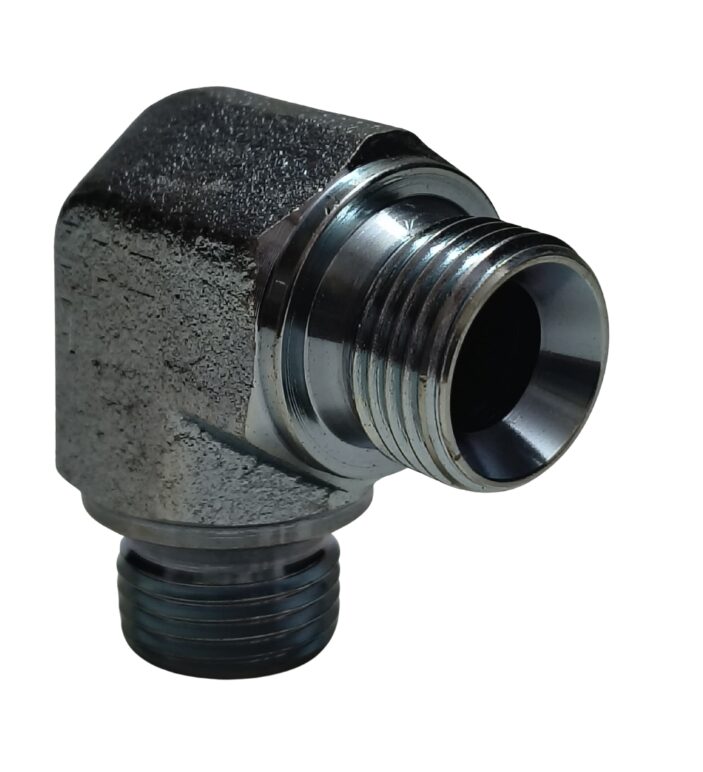

• Hydraulic Male Elbow
• Hydraulic Swivel Elbow – Male to Female
• Hydraulic Male Tee
• Hydraulic Swivel Tee – Male to Female
• Hydraulic Male Cross

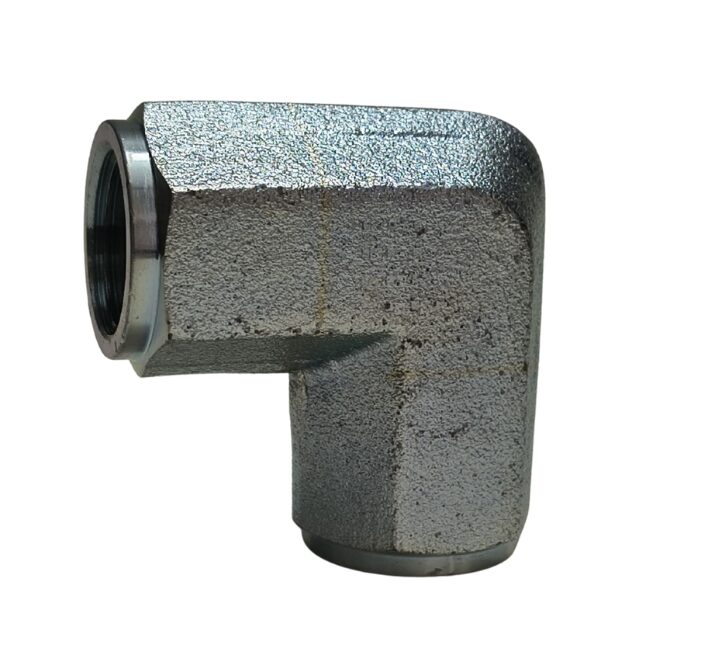

• Hydraulic Female Elbow

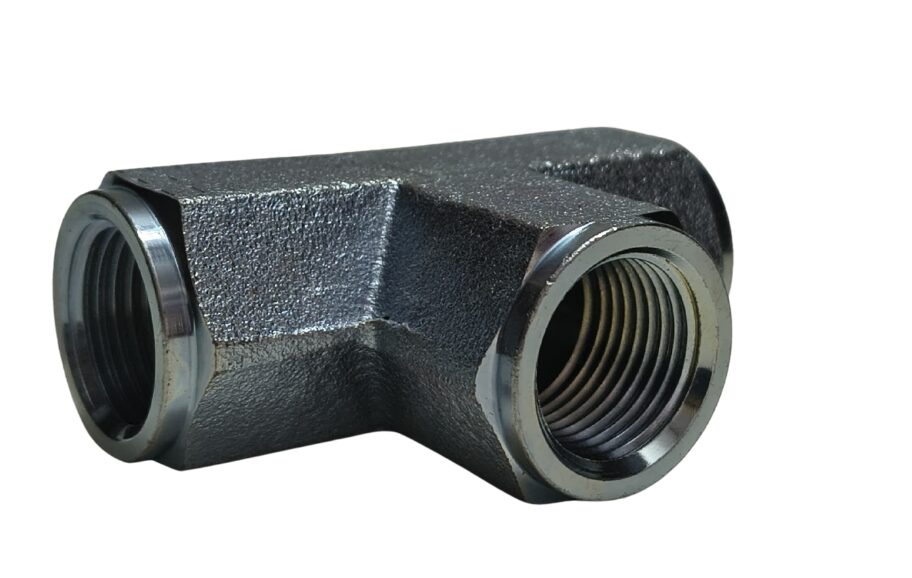

• Hydraulic Female Tee
• Hydraulic Male–Female Elbow
• Hydraulic Male–Female Tee

 The Role of BSP Pipe Fittings in hydraulic system

Wherever bite-type ferrule fittings are used to create tube connections, hydraulic BSP pipe fittings often play a very important role in joining different components of the hydraulic system

Hydraulic circuit work is completed through these BSP pipe fittings, allowing hydraulic fluid to flow through the system at high pressure and enabling machines to perform the functions they are designed for
