A Stainless Steel (SS) Double Ferrule Union is a type of tube fitting designed for joining two pieces of tubing in a fluid system
- Material: Typically made of stainless steel, SS 304 and SS 316 grades which provides corrosion resistance, durability, and high strength.

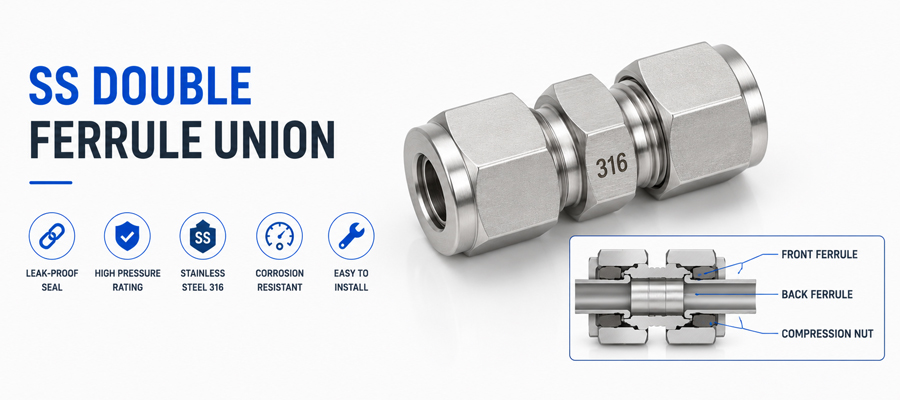

- Double Ferrule Design: Similar to the male connector, the double ferrule union features two ferrules (compression rings). The front ferrule seals the connection against the fitting body, while the back ferrule provides support and grips onto the tubing.
- Body: The main body of the union is also made of stainless steel, ensuring robust construction and resistance to corrosion.
- Nuts: The union includes nuts that allow for tightening and securing the connection between the two pieces of tubing.
- Threads: The union may have external threads on both ends, allowing it to be connected to other fittings or components with matching threads.
Applications of SS Union
SS Double Ferrule Unions are widely used in various industries where secure and leak-free connections between tubing are essential. Common applications include:
- Instrumentation Systems: Used in instrumentation and control systems to connect tubing for the precise control of fluid flow in laboratories, industrial processes, and other applications.
- Chemical Processing: Suitable for corrosive environments in chemical processing plants where resistance to chemical corrosion is crucial.
- Oil and Gas: Applied in hydraulic and pneumatic systems within the oil and gas industry.
- Power Generation: Used in power plants for connecting tubing in hydraulic and cooling systems.
- Automotive: Found in automotive applications for fluid transfer systems, such as fuel lines.
Salient Features of SS Double Ferrule Union
- Leak Resistance: The double ferrule design of the Union fitting ensures a reliable and leak-tight seal, preventing fluid from escaping the connection.
- Pressure and Temperature Resistance: The Stainless steel construction allows the union to withstand high-pressure and high-temperature conditions.
- Corrosion Resistance: Stainless steel provides excellent resistance to corrosion, making these unions suitable for use with corrosive fluids.
- Reusability: The bite type design allows for multiple assembly and disassembly cycles without compromising the integrity of the connection.
- Easy Installation: Typically, these unions are easy to install, requiring simple tools for assembly.
When using SS Double Ferrule Unions, it’s essential to follow proper installation procedures, ensure compatibility with tubing and other components, and consider factors such as pressure, temperature, and the nature of the fluids being conveyed. Regular inspection and maintenance are also recommended to ensure the continued reliability of the connections.
