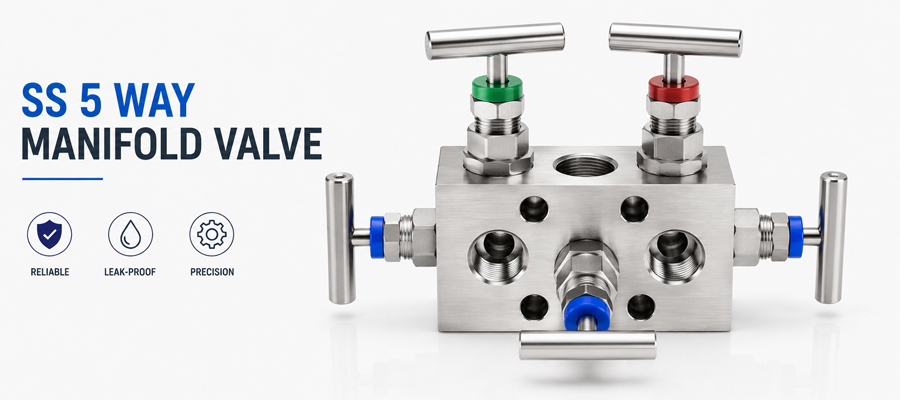

The SS 5 valve manifold valve is an essential component of many industrial applications, particularly in the oil and gas industry. It is a versatile valve that enables operators to control the flow of fluids and gases with precision and accuracy.

The SS 5 valve manifold valve is a type of instrument valve that is designed to regulate the flow of process fluids in industrial applications. It is typically used in systems that require precise control of fluid flow, pressure, and temperature. The valve is made up of five individual valves that are arranged in a manifold configuration, hence the name “5 valve manifold valve.”

The five valves in the manifold are arranged in a specific order, with two block valves, two equalizing valves, and one vent valve. The block valves are designed to isolate the instrument from the process fluid or gas, while the equalizing valves are used to equalize pressure between the process and the instrument. The vent valve is used to release any trapped air or gas in the system.

The block valves in the SS 5 valve manifold valve are typically ball valves or needle valves, depending on the application. Ball valves are ideal for applications that require quick opening and closing, while needle valves are more suitable for applications that require precise control of flow rate. The equalizing valves are typically needle valves that are designed to equalize pressure between the process and the instrument. The vent valve is typically a ball valve that is designed to quickly release trapped air or gas in the system.

The SS 5 valve manifold valve is commonly used in applications that require accurate measurement of pressure, flow, and temperature in instrumentation lines .
