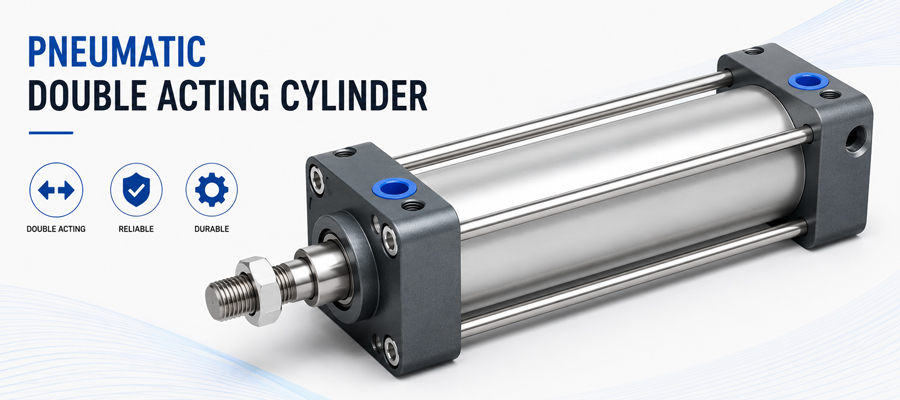

A double-acting pneumatic cylinder is a type of actuator that utilizes compressed air to generate linear motion in both extending and retracting directions. Unlike single-acting cylinders, which rely on external forces or springs for the return stroke, double-acting cylinders use compressed air for both strokes. Here’s a detailed overview of double-acting pneumatic cylinders, including their features, working principles, and applications:

Features of Double-Acting Pneumatic Cylinders:

1. Bidirectional Motion:
   • Double-acting cylinders can extend and retract using compressed air for both strokes, providing more control over linear motion.
2. Increased Force:
   • The ability to apply force in both directions makes double-acting cylinders suitable for applications requiring higher force capabilities.
3. Flexible Applications:
   • These cylinders are versatile and find use in various industrial applications due to their bidirectional functionality.
4. Adjustable Speed:
   • The speed of the extending and retracting strokes can be controlled independently, offering flexibility in motion control.
5. Wear-Resistant Seals:
   • Double-acting cylinders are equipped with seals that are designed to withstand wear and maintain air-tightness during bidirectional movement.
6. Precise Positioning:
   • The bidirectional control and adjustability of these cylinders allow for precise positioning in applications requiring accuracy.

Working Principles of Double-Acting Pneumatic Cylinders:

1. Extension Stroke:
   • Compressed air is introduced into one end of the cylinder, pushing the piston in the extending direction.
2. Retraction Stroke:
   • Compressed air is introduced into the opposite end of the cylinder, causing the piston to retract to its original position.
3. Directional Control Valves:
   • Directional control valves regulate the flow of compressed air into different chambers of the cylinder, controlling the direction of motion.
4. Adjustable Speed Control:
   • Flow control valves can be used to adjust the speed of both the extending and retracting strokes independently.
5. Position Sensors:
   • Sensors can be incorporated to provide feedback on the position of the piston, enabling precise control and monitoring.

Applications of Double-Acting Pneumatic Cylinders:

1. Material Handling:
   • Double-acting cylinders are used in conveyor systems, lifts, and other material handling applications for controlled movement.
2. Manufacturing and Automation:
   • These cylinders find widespread use in automated manufacturing processes for tasks such as part assembly, machining, and packaging.
3. Construction Equipment:
   • Excavators, loaders, and other construction equipment often use double-acting cylinders for lifting and positioning.
4. Industrial Machinery:
   • Presses, stamping machines, and forming equipment use double-acting cylinders for applying force in both directions.
5. Controlled Actuation:
   • Applications requiring precise control, such as robotic arms and grippers, benefit from the bidirectional functionality of these cylinders.
6. Agricultural Equipment:
   • Tractors and other agricultural machinery use double-acting cylinders for various functions, including raising and lowering implements.
7. Door and Gate Control:
   • Double-acting cylinders are employed in systems controlling the opening and closing of doors, gates, and barriers.

Considerations and Maintenance:

1. Air Quality:
   • Clean and dry compressed air is crucial to prevent damage to seals and ensure the efficient operation of the cylinder.
2. Seal Inspection:
   • Regular inspection of seals is essential to identify and replace worn or damaged components.
3. Lubrication:
   • Lubrication of moving parts is necessary to reduce friction and ensure smooth operation.
4. Control Valve Maintenance:
   • Maintenance of directional control valves and other control components is important for proper functioning.

Double-acting pneumatic cylinders are integral components in various industrial applications where bidirectional force and precise motion control are required. Proper selection, installation, and maintenance are crucial for ensuring the longevity and reliability of these cylinders in their intended applications.
