Hydraulic flanges are components used to connect hydraulic hoses, tubes, or pipes in a fluid power system. They provide a secure and leak-free connection between two components by creating a flat sealing surface between the two flange halves. Hydraulic flanges are commonly used in applications where high-pressure fluid transfer is required, such as in the oil and gas, marine, and construction industries.
Hydraulic flanges come in different shapes and sizes, but the most common type is the SAE standard 4-bolt flange. This type of flange has four bolt holes arranged in a square pattern, and it can accommodate hydraulic hoses or tubes with different sizes and types of end connections, such as flared, O-ring face seal, or straight thread connections.
The main advantages of hydraulic flanges are their ability to handle high pressure and provide a secure and leak-free connection. They can also be easily disconnected and reconnected, which makes them ideal for applications that require frequent maintenance or replacement.
However, hydraulic flanges can be more expensive and require more space than other types of hydraulic connections, such as threaded or welded connections. They also require more time and effort to install, and the bolts need to be tightened to a specific torque to ensure a proper seal. Improper installation can lead to leaks or even failure of the hydraulic system.
Overall, hydraulic flanges are an effective and reliable option for hydraulic connections in applications that require high pressure and frequent maintenance or replacement.
Overall, the type of hydraulic flange used will depend on the specific application and requirements of the fluid power system. Proper selection and installation of hydraulic flanges are crucial to ensure a safe, reliable, and efficient hydraulic system.

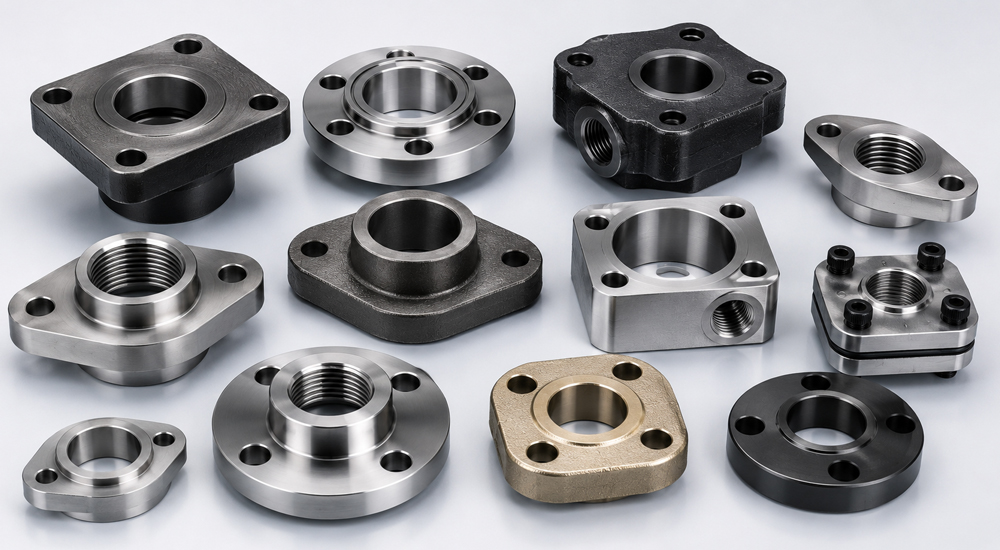

Types of Hydraulic Flanges
There are several types of hydraulic flanges used in fluid power systems, each designed to accommodate specific types of connections and applications. Here are some of the most common types of hydraulic flanges:
-
- SAE standard 4-bolt flange: This is the most common type of hydraulic flange and it is designed to accommodate hydraulic hoses or tubes with different sizes and types of end connections, such as flared, O-ring face seal, or straight thread connections. The SAE standard 4-bolt flange has four bolt holes arranged in a square pattern.
-
- SAE standard 3-bolt flange: This type of flange is similar to the 4-bolt flange but has only three bolt holes arranged in a triangular pattern. It is used in applications where space is limited.
-
- Split flange: This type of flange has a two-piece design that allows for easy installation and removal of the flange without disconnecting the entire hydraulic system. It is commonly used in applications that require frequent maintenance or replacement.
-
- Socket-weld flange: This type of flange is welded directly onto the pipe or tube, providing a strong and leak-free connection. It is commonly used in high-pressure applications.
-
- Weld-neck flange: This type of flange is designed to be butt-welded to a pipe or tube, providing a strong and reliable connection. It is commonly used in applications where high pressure and temperature are present.
-
- Lap-joint flange: This type of flange is used with a stub-end fitting and provides easy alignment of the bolt holes. It is commonly used in applications where frequent assembly and disassembly are required.
Types of Hydraulic SAE Flanges
SAE Split flanges – Code 61 and Code 62 Flanges
SAE Mono flanges
O Ring Face SAE Flanges
Flat Face SAE flanges
SAE Socket Weld Flange
SAE Butt Weld Flange
SAE Threaded Flange
SAE Blind Flange
SAE Blanking Plate
CETOP Flange
Components of a Hydraulic Flange
- Flange Head: The main body with a flat or grooved face for sealing.
- Bolt Holes: Standardized pattern and size for securing the flange with bolts.
- O-Ring or Gasket: Used for sealing the connection and preventing leaks.
Working Principle of Hydraulic SAE Flange
The working principle of hydraulic SAE flanges is based on providing a secure and leak-free connection between hydraulic components through precise mechanical assembly and high-quality sealing. Here’s how they work:
- Sealing Surface:
- The flange face, either flat or grooved for an O-ring, mates with a corresponding component. The sealing surface ensures a tight connection to prevent fluid leakage.
- Bolting:
- The flange is secured with bolts through the standardized bolt holes. Proper torquing of the bolts is crucial to ensure the flange is tight enough to create a leak-free seal without causing damage.
- Pressure Handling:
The flange material and design are selected based on the system’s pressure requirements. Code 61 flanges handle medium pressures, while Code 62 flanges are designed for high-pressure applications
Functions of SAE Flanges
Hydraulic SAE flanges serve several critical functions in hydraulic systems:
- Secure Connections:
- Provide a strong and durable connection between hydraulic components, ensuring the system remains intact under high pressure and dynamic loads.
- Leak Prevention:
- The use of O-rings or gaskets in the flange design ensures a reliable, leak-free seal, which is essential for maintaining hydraulic fluid pressure and preventing contamination.
- Ease of Maintenance:
- Designs like split flanges allow for easy disassembly and reassembly, facilitating maintenance and reducing downtime.
- Standardization:
Adherence to SAE standards ensures compatibility across different components and manufacturers, simplifying system design and maintenance
Applications of Hydraulic Flange
Hydraulic SAE flanges are used in various applications across different industries due to their robust design and reliable performance. Some common applications include:
- Industrial Machinery:
- Essential in machines where high-pressure hydraulic systems are used for operational efficiency and safety.
- Construction Equipment:
- Used in equipment like excavators, loaders, and cranes, which rely on hydraulic systems for movement and operation.
- Agricultural Machinery:
- Ensure reliable hydraulic performance in tractors, harvesters, and other farming equipment.
- Automotive:
- Applied in hydraulic systems within trucks, buses, and heavy vehicles, particularly in braking and power steering systems.
- Marine Applications:
- Suitable for hydraulic systems in marine environments, which require robust and corrosion-resistant connections.
Add Your Heading Text Here
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Installation and Maintenance of Hydraulic Flanges
- Proper Torque:
- Applying the correct torque to the bolts is crucial to ensure a secure and leak-free connection. Over-tightening can damage the flange, while under-tightening can result in leaks.
- Alignment:
- Accurate alignment of the flange with its mating component is necessary to prevent stress on the flange and seal, which can lead to leaks or failure.
- Inspection:
- Regular inspection of flanges, seals, and bolts is essential to maintain the integrity of the hydraulic system and prevent potential failures.
- Seal Condition:
- Inspect O-rings or gaskets for any damage or wear before installation. A damaged seal can lead to leaks and compromise system performance.
How to install a hydraulic flange
How to install hydraulic flanges
Installing hydraulic flanges can be a relatively simple process if you follow the proper steps. Here are the general steps to install hydraulic flanges:
- Choose the correct flange for your system: Ensure that the flange is the correct size and pressure rating for your system. The flange should also be made of the appropriate material for the fluid that will flow through it.
- Clean the flange faces: Make sure that the flange faces are clean and free of any dirt, debris, or corrosion. Use a wire brush or emery cloth to clean the surfaces thoroughly.
- Position the gasket: Place the gasket between the two flanges, making sure that it is aligned with the bolt holes.
- Align the flanges: Carefully align the two flanges, making sure that the bolt holes are aligned and the gasket is centered.
- Insert the bolts: Insert the bolts into the bolt holes and tighten them by hand.
- Tighten the bolts: Use a torque wrench to tighten the bolts in a crisscross pattern. Make sure that you follow the manufacturer’s recommended torque settings.
- Inspect the installation: Check that the flange faces are still aligned and that there are no leaks.
- Test the system: Once the flange is installed, test the system to ensure that there are no leaks and that it is functioning correctly.
It’s important to note that these are general steps, and the specific steps and requirements may vary depending on the type of flange and the system you are working with. Always follow the manufacturer’s instructions and safety guidelines when installing hydraulic flanges.
Hydraulic SAE flanges are critical components in high-pressure hydraulic systems, providing secure, durable, and leak-free connections. Their design, adhering to SAE standards, ensures compatibility and reliability across various industrial applications. Understanding the design, working principle, and functions of these flanges is essential for maintaining the integrity and performance of hydraulic systems. Whether in industrial machinery, construction equipment, agricultural machinery, or automotive applications, hydraulic SAE flanges offer the robust and reliable connections necessary for optimal system performance
