Hydraulic return line filters are essential components in hydraulic systems that are designed to filter the fluid returning to the reservoir. The purpose of these filters is to remove contaminants, such as dirt, metal particles, and other debris, from the hydraulic fluid to ensure the proper functioning of the system. In this article, we will explore hydraulic return line filters in more detail, including their function, types, and maintenance.
Functions of Hydraulic Return Line Filters
Hydraulic systems use a fluid to transfer power from one location to another. This fluid is typically oil-based and flows through a network of pipes, hoses, and valves to perform various tasks, such as lifting heavy loads, controlling the speed of machinery, and providing lubrication to moving parts. However, the hydraulic fluid is susceptible to contamination from external sources, such as dust, dirt, and metal particles. If these contaminants are not removed, they can damage the hydraulic components, reduce the efficiency of the system, and lead to costly repairs.
Hydraulic return line filters are designed to remove these contaminants from the fluid as it returns to the reservoir. The filters are typically located on the return line, which is the pathway that the fluid takes back to the reservoir after it has performed its task. As the fluid passes through the filter, the contaminants are trapped, and only clean fluid is allowed to return to the reservoir.
Types of Hydraulic Return Line Filters
There are several types of Hydraulic Return Line Filters
Strainers
Strainers are simple mesh screens that are placed in the return line to trap large particles, such as rocks, twigs, and leaves. They are typically made of stainless steel or brass and are available in various mesh sizes. Strainers are effective at removing large contaminants but are not suitable for finer particles, such as dust and metal shavings.
Spin On Filters
Spin-on filters are compact, disposable filters that are easy to install and replace. They consist of a housing that contains the filter element, which is usually made of paper or synthetic media. The housing screws onto a mounting bracket and has an inlet and outlet port for the fluid to flow through. Spin-on filters are available in various sizes and filtration ratings and are suitable for applications that require moderate filtration efficiency.
Inline Filters
Inline filters are similar to spin-on filters but are designed to be installed directly into the return line. They consist of a housing that contains the filter element and have inlet and outlet ports that are connected to the return line. Inline filters are available in various sizes and filtration ratings and are suitable for applications that require high filtration efficiency.

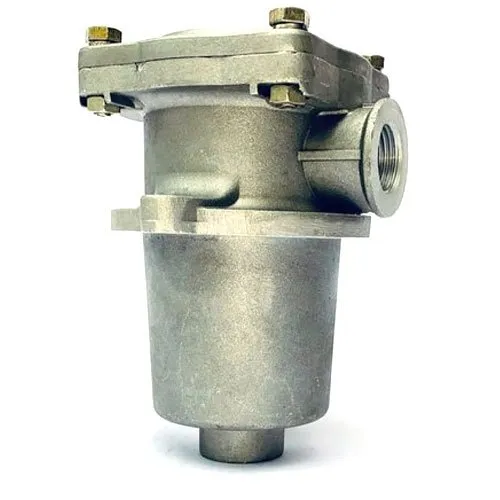

Tank Top Filters
Tank-top filters are installed on the top of the reservoir and are designed to filter the fluid as it enters the reservoir. They consist of a housing that contains the filter element and have an inlet port that is connected to the return line and an outlet port that is connected to the reservoir. Tank-top filters are available in various sizes and filtration ratings and are suitable for applications that require high filtration efficiency.
Maintenance of Hydraulic Return Line Filters
Proper maintenance of hydraulic return line filters is essential to ensure the longevity and proper functioning of the hydraulic system. Here are some tips for maintaining hydraulic return line filters
Check the Filter Element
The filter element is the most critical component of the filter and should be checked regularly for signs of wear and tear. If the filter element is clogged or damaged, it should be replaced immediately to prevent damage to the hydraulic components.
Change the Filter Regularly
The frequency of filter changes depends on several factors, such as the type of filter, the filtration rating, and the operating conditions. However, as a general rule, spin-on filters should be changed every 500 hours of operation, while inline filters and tank-top filters should be changed every 1000 hours
